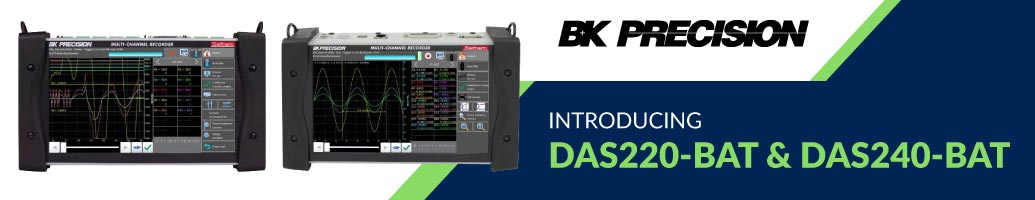

Introducing the DAS220-BAT & DAS240-BAT
Portable Multi-Channel Data Recorders

The DAS220-BAT and DAS240-BAT are suited for process control and environmental sensor monitoring. They feature expandability from 10 to 200 configurable channels, a sampling interval of 1 ms/channel, input range of +-0.5 mV to +- 100 V, an internal solid state memory of 32 GB, and up to 15 hrs of battery life.

Data Acquisition Recorders & Loggers are used in process applications to measure parameters such as voltage, temperature, current, resistance, frequency and pulse over a long period of time. These measurements can be stored internally, viewed on the unit in real time or on a remote computer.

The included DasLab software allows users to remotely control and configure the recorder, transfer measurements and configuration files or view live data on the computer.

DAS220-BAT
Portable 10-Channel Data Recorder

The DAS220-BAT measures parameters commonly found in process applications including voltage, temperature, current, resistance, frequency and pulse. It includes 10 built-in universal analog channels with convenient screw input terminals for portability. This recorder was developed by B&K Precision’s subsidiary Sefram in France, which specializes in the design and manufacture of data acquisition instruments, field strength meters, and other test and measurement instruments.

Measurement results can be viewed graphically and numerically on the 10-inch color touch screen and saved to internal solid-state memory or an external USB memory stick. Icon-driven menus make the instrument easy to navigate. The free DasLab Windows PC software allows users to remotely control and configure the recorder, transfer logging results and configuration files, and view live data in graphical or numerical format on the PC.

Datasheet

DAS240-BAT
Portable Multi-Channel Data Recorder

The DAS240-BAT measures parameters commonly found in process applications including voltage, temperature, current, resistance, frequency and pulse. It includes 20 universal analog channels with convenient screw input terminals that can be expanded up to 200 channels. This recorder was developed by B&K Precision’s subsidiary Sefram in France, which specializes in the design and manufacture of data acquisition instruments, field strength meters, and other test and measurement instruments.

Measurement results can be viewed graphically and numerically on a 10-inch color touch screen and saved to internal solid state memory or an external USB memory stick. Icon-driven menus make the instrument easy to navigate. The free DasLab Windows PC software allows users to remotely control and configure the recorder, transfer logging results and configuration files, and view live data in graphical or numerical format on the PC.

Datasheet
