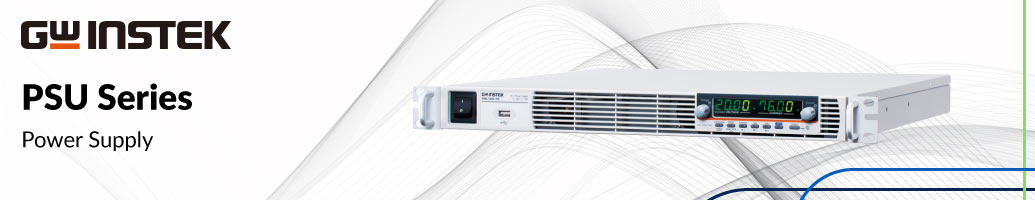

PSU-Series Programmable Switching D.C. Power Supply

The PSU-Series is a single output programmable switching DC power supply covering a power range up to 1560W. This Series of products include ten models with the combination from 6V to 600V rated voltages.

Utilizing same model units of the PSU-series to conduct series and parallel connections can increase total output power, total current or total voltage. The wide voltage and current output ranges of the PSU-series can fully satisfy various voltage and current measurement requirements.

The PSU-series provides maximum 2 units in series connection (models under 300V) to achieve maximum 600V or 4 units in parallel connection to obtain maximum 800A and the maximum output power of 6.24 kilowatts.

The PSU series allows settings for CC priority or CV priority. Under CC or CV mode, users can adjust slew rate for output voltage or current based upon test requirements. There are two kinds of slew rate settings: high speed priority and slew rate priority. High speed priority sets slew rate at the maximum speed to reach CC or CV mode. Slew rate priority allows users to set slew rate for CC or CV mode in order to control rise or fall slew rate. Slew rate priority mode is ideal for motor tests by adjusting the rise time of output voltage to protect DUT from being damaged by inrush current occurred at turn-on.

Features
  • Voltage Rating:6V/12.5V/20V/40V/60V/100V/150V/300V/400V/600V
  • Output Power Rating: 1200W~1560W
  • C.V / C.C Priority
  • Adjustable voltage/current rise and fall time
  • Series/ Parallel Connection: Max. 2 Units(Models Under 300V)/ 4 Units of The Same Model
  • High Efficiency and High Power Density
  • 1U Height and 19”Rack Mount Size
  • Standard Interface: USB, LAN, RS-232, RS-485, Analog Control
  • Optional Interface: GPIB, Isolated Analog Interface(Voltage Control/ Current Control)

See our available models below:

PSU 600-2.6 1560W Programmable Switching DC Power Supply
PSU 20-76 1520W Programmable Switching DC Power Supply
PSU 400-3.8 1520W Programmable Switching DC Power Supply
PSU 60-25 1500W Programmable Switching DC Power Supply









Standard Accessories:

CD-ROM x 1(User Manual, Programming Manual), Output terminal cover x 1, Analog connector plug kit x 1, Output terminal M8 bolt set(6V~60V model), Input terminal cover x 1, 1U Handle(RoHS), 1U Bracket(LEFT, RoHS), 1U Bracket(RIGHT, RoHS), Power Cord x 1

Optional Accessories:

GTL-246 USB cable, USB 2.0 A-B type cable, 4P

PSU-01A Joins a vertical stack of 2 PSU units together. 2U-sized handles x2, joining plates x2

PSU-01B Bus Bar for 2 units in parallel operation

PSU-01C Cable for 2 units in parallel operation

PSU-02A Joins a vertical stack of 3 PSU units together. 3U-sized handles x2, joining plates x2

PSU-02B Bus Bar for 3 units in parallel operation

PSU-02C Cable for 3 units in parallel operation

PSU-03A Joins a vertical stack of 4 PSU units together. 4U-sized handles x2, joining plates x2

PSU-03B Bus Bar for 4 units in parallel operation

PSU-03C Cable for 4 units in parallel operation

PSU-232 RS232 Cable with DB9 connector kit

PSU-485 RS485 Cable with DB9 connector kit

GRM-001 Slide bracket 2pcs / set

PSU-GPIB GPIB Interface Card (Factory Installed)

PSU-ISO-I Isolated Current Remote Control Card (Factory Installed)

PSU-ISO-V Isolated Voltage Remote Control Card (Factory Installed)

GPW-001 UL/CSA power cord, 3M

GPW-002 VDE power cord, 3M

GPW-003 PSE power cord, 3M
