Keysight Handheld Tools - Authorized Keysight Distributor

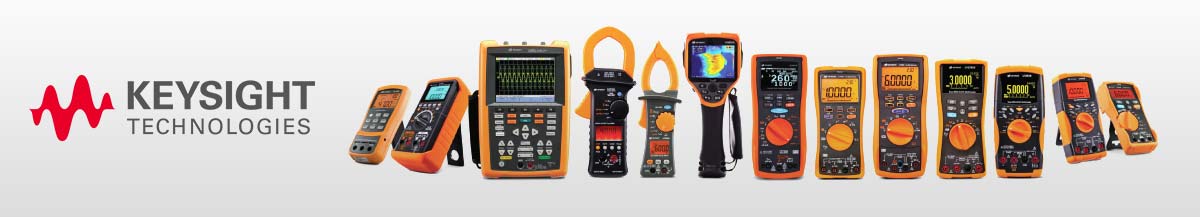

Keysight's family of handheld and portable test tools is constantly growing. From digital multimeters (DMMs) and basic capacitance meters, to oscilloscopes, our handheld and portable test tools will address the test and measurement capabilities you need to complete your tasks – on the bench or in the field.

Whatever your industry and application – electronics, electrical, installation and maintenance, wireless communications, aerospace and defense, or industrial process testing – we have a wide range of test tools for you.

Download: Keysight Handheld Tools Brochure

Digital Multimeters
From electronics troubleshooting to installation and maintenance of machinery, Keysight handheld digital multimeters (DMMS) are designed to withstand the harsh working conditions and improve safety.
Each DMM is compatible with the U1177A and U1117A Infrared (IR)-to-Bluetooth adapter that offers wireless remote connectivity solution.
Our ranges of handheld DMMs are also equipped with smart features to help you quickly detect problems and obtain accurate measurements.

U1230 Series Handheld Multimeters
Designed for electrical, HVAC and utilitiy applications. 6000-count display, 0.5% basic DC accuarcy, CAT III 600 certified. IR to USB or Bluetooth connectivity.

U1231A True RMS AC to 1kHz, AC/DCV: 600mV to 600V, Resistance, Capacitance, Diode, Continuity
U1232A True RMS AC to 1kHz, AC/DCV: 600mV to 600V, AC/DCI 60µA to 10A, Resistance, Capacitance, Diode, Continuity
U1233A True RMS AC to 1kHz, AC/DCV: 600mV to 600V, AC/DCI 60µA to 10A, Resistance, Capacitance, Diode, Continuity, Temperature, Vsense

U1240 Series Handheld Multimeters
Rugged DMMs for installation and maintenance troubleshooting. 10000-count display, 0.09% basic DC accuracy, IR to USB or Bluetooth connectivity. All feature DCV and ACV, DCI and ACI, Resistance, Frequency, Capacitance, Diode & Continuity Test, and Temperature plus Datalogging capability.

U1241B Handheld Digital Multimeter, Single Temperature
U1242B Handheld Digital Multimeter, Dual & Differential Temperature
U1241C Handheld Digital Multimeter, IP67, Single Temperature, LED Flashlight
U1242C Handheld Digital Multimeter, IP67, Dual & Differential Temperature, LED Flashlight

U1250 Series Handheld Multimeters
Versatile DMMs for electronic troubleshooting and analysis. 50000-count dual-display, 0.03% (U1251B) 0.025% (U1252B/U1253B) basic DC accuracy, IR to USB or Bluetooth connectivity. All feature DCV and ACV, DCI and ACI, Resistance, Frequency, Capacitance, Diode & Continuity Test, and Temperature plus Datalogging capability.

U1251B Handheld Digital Multimeter, True RMS AC, Freq. to 1 MHz, Type K Temp.
U1252B Handheld Digital Multimeter, True RMS AC+DC, Freq. to 20 MHz, Type J/K Temp., Rechargeable
U1253B Handheld Digital Multimeter, OLED, True RMS AC+DC, Freq. to 20 MHz, Type J/K temp., Rechargeable

U1270 Series Handheld Multimeters
Rugged high-performance meters, rated IP 54 for water and dust resistance. 30000-count display, 0.05% basic DC accuracy, Low Passs Filter, Peak Detect, IR to USB or Bluetooth connectivity. All feature DCV and ACV, DCI and ACI, Resistance, Frequency, Capacitance, Diode & Continuity Test, and Temperature plus Datalogging capability.

U1271A Handheld Digital Multimeter, LCD, True RMS AC
U1272A Handheld Digital Multimeter, LCD, True RMS AC+DC, Low Impedance Mode, Smart Ohm
U1273A Handheld Digital Multimeter, OLED, True RMS AC+DC, Low Impedance Mode, Smart Ohm
U1273AX Handheld Digital Multimeter, OLED, True RMS AC+DC, Low Impedance Mode, Smart Ohm, operating to -40°C

U1280 Series Handheld Multimeters
Rugged high-performance meters. Rated IP 67 for water/dust resistance and drops to 10 feet. 60000-count display, 0.025% basic DC accuracy, IR to USB or Bluetooth connectivity. All feature DCV and ACV, DCI and ACI, Resistance, Frequency, Capacitance, Diode & Continuity Test, and Temperature plus Datalogging capability.

U1281A Handheld Digital Multimeter
U1282A Handheld Digital Multimeter, Frequency Counter, Square Wave Generator, Non-contact Voltage Detection

Clamp Meters
Keysight clamp meters are designed to address the toughest electrical challenges without compromising on safety. Certified with safety ratings and equipped with a wealth of features - you are now ready to make measurements with more confidence.

Keysight U1190 Series Clamp Meters
Designed for commercial or residential electrical installation and maintenance. The built-in LED flashlight illuminates your test area while Vsense performs noncontact voltage detection. 6000-count display, 0.5% basic DC accuarcy, CAT III 600 V and CAT IV 300 V certified.

U1191A Average AC, ACI: 400A, AC/DCV: 600V
U1192A Average AC, ACI: 60-400A, AC/DCV: 60-600V, frequency, capacitance
U1193A True RMS, AC/DCI: 60 µA to 400A, AC/DCV: 60-600V, frequency, capacitance
U1194A True RMS, AC/DCI: 60 µA to 400A, AC/DCV: 60-600V, frequency capacitance, temperature

Keysight U1210 Series Clamp Meters
Designed for installation and maintenance of power distribution and supplies. 4000-count display, 0.5% basic DC accuarcy, CAT III 600 V and CAT IV 300 V certified. IR to USB or Bluetooth connectivity.

U1211A True RMS AC to 400Hz, ACI: 40-1000A, AC/DCV: 4-4000V, Resistance to 4kΩ, Frequency, Capacitance, Diode, Continuity
U1212A True RMS AC to 400Hz, AC/DCI: 40-1000A, AC/DCV: 4-4000V, Resistance to 4kΩ, Frequency, Capacitance, Diode, Continuity, Temperature
U1213A True RMS AC+DC to 2kHz, AC/DCI: 40-1000A, AC/DCV: 4-4000V, Resistance to 40MΩ, Frequency, Capacitance, Diode, Continuity, Temperature

TrueIR Thermal Imagers
Find potential thermal problems more quickly with the higher resolution and affordability of the U5850 series TrueIR thermal imagers.

U5855A TrueIR Thermal Imager, to 350°C
U5856A TrueIR Thermal Imager, to 650°C
U5857A TrueIR Thermal Imager, to 1200°C

Handheld Oscilloscopes
U1600 Series 3 in 1 dual-channel handheld oscilloscopes with a built-in DMM and data logger. Conquer the elements: perform waveform analysis under any weather conditions.

U1610A Handheld Oscilloscope, 100 MHz, 2 Analog Channels
U1620A Handheld Oscilloscope, 200 MHz, 2 Analog Channels

Handheld Capacitance and LCR Meters
Need to perform indicative LCR checking on the go? The U1701B handheld capacitance meters provides extra capabilities and functionalities into electronics assembly and passive components troubleshooting with up to 25 sets of High/Low limits. U1731C/32C/33C handheld LCR meters allow you to measure frequencies as high as 100 kHz, a capability typically found only in benchtop meters.

U1701B Handheld Capacitance Meter
U1731C Handheld LCR Meter, 100Hz, 120Hz, 1kHz test frequencies
U1732C Handheld LCR Meter, 100Hz, 120Hz, 1kHz, 10kHz test frequencies
U1733C Handheld LCR Meter, 100Hz, 120Hz, 1kHz, 10kHz, 100kHz test frequencies

Handheld Insulation Resistance Testers
U1450A/U1460A Series are deal for predictive and preventive maintenance measurement tasks in electrical and industrial applications. With their vast measurement capabilities, efficient automated report generation and high durability, you can accomplish more in a day's work.

U1451A Insulation Resistance Tester, 250V to 1kV, to 66 GΩ, 6600 Count DMM
U1452A Insulation Resistance Tester, 50V to 1kV, to 260 GΩ, 6600 Count DMM
U1452AT Telecommunications Insulation Resistance Tester, 50V to 1kV, to 66 GΩ, 66000 Count DMM
U1453A Insulation Resistance Tester, OLED display, 50V to 1kV (adjustable), to 260 GΩ, 66000 Count DMM, True RMS AC
U1461A Insulation Resistance Tester, OLED display, 50V to 1kV (adjustable), to 260 GΩ, 66000 Count DMM, True RMS AC, Temperature
