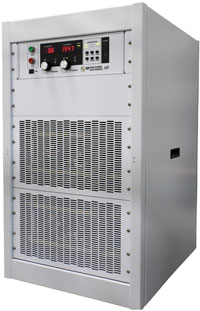

Magna-Power Electronics MS Series DC Power Supplies

Magna-Power Electronics MS Series DC Power Supplies
  • Floor standing models from 30 kW to 75 kW
  • 84 Models: 0-16 to 0-4000 Vdc and 0-7.2 to 0-4500 Adc
  • Wide range of input voltage options: From 208 Vac to 480 Vac, at 50 Hz, 60 Hz, and 400 Hz
  • Optically isolated user I/O circuitry standard
  • High efficiency operation: Up to 88% efficiency on select models
  • RS-232 interface standard with SCPI Commands
  • Optional GPIB, USB, Ethernet (LXI), RS-485 interfaces
  • Over Voltage and Over Current shutdown standard
  • Certified LabWindows/CVI, LabView, and IVI Drivers
  • Programmable Output Modulation: Emulates user-defined power profiles (D Panel units only)
  • Automatic Voltage/Current Crossover
  • Front Panel Calibration
  • CE Mark on all Series IV Models
  • Made in USA
  • Two Year Warranty

Please complete the request a quote form and a sales associate will contact you shortly

SPECIAL ORDER ITEM - NON-CANCELLABLE, NON-RETURNABLE

Please read the data sheet carefully to determine which version front panel and input voltage you require before ordering! These products are non-returnable.

Innovative
Magna-Power Electronics MS Series combines the best of dc power processing with multiprocessor embedded control. A combination of high and medium frequency power processing technologies improves response, shrinks package size, and reduces cost. MS Series power supplies are current fed and are more tolerant to abusive loads than conventional switching power supplies.

Scalable Power
MS Series power supplies offer both master/slave parallel and series operation. This enables two or more power supplies to be placed in parallel for increased output current or in series for increased output voltage. With master/slave operation, power supplies operate at near equal voltage and current.

Electronic Output Bleeder Stage - New for MS Series IV
Standard output bleeder resistance was replaced with near constant power electronic loading. The new output stage enables faster fall times, and improved performance under light loading without affecting overall efficiency.

High Accuracy Programming and Monitoring - New for MS Series IV
Enhancements to the product controls and calibration procedures enabled an over five-fold improvement in accuracy. Accuracy specifications are now ±0.075% of full-scale voltage/current programming and ±0.2% of full-scale voltage/current monitoring. Higher accuracy enables measurements to be taken directly from Magna-Power Electronics power supplies, eliminating the need for external power meters and lowering overall system costs and complexity. All power supplies still maintain ease of front panel calibration.

Unparalelled Control
MS Series power supplies can be configured through the front panel for different applications. The power supply can be programmed to have its control functions accessible from the front panel, rear connector, or through RS-232, optional GPIB, or optional LXI TCP/IP Ethernet communications. Sensing can be established at the output terminal of the power supply or through a rear terminal block for sensing at the load. An external interlock can be set to enable operation only when an external connection is made. Even calibration has been simplified with front panel access to calibration digital potentiometers. MS Series power supplies incorporate an optically isolated feedback system. The result is that all user interface circuitry is referenced to earth ground -- not the negative terminal of the power supply. This enables users to connect external circuitry without concern of ground loops or voltage breakdown.

Load Dependent Air or Optional Water Cooling
MS Series power supplies are designed to operate at rated load 24 hours per day. Standard air cooled units are equipped with variable speed, load dependent blowers to maintain comfortable margins for removing heat from sensitive power semiconductors. Variable speed operation maximizes fan life and a minimizes external environmental hazards. Optional water cooled models contain integrated semiconductor chillers and air to water heat exchangers to manage cooling of heat producing components. This option allows the power supply to be sealed from the environment enabling placement in harsh environments. These units provide long life in plating facilities, electrodionization treatment plants, shipboard, and other corrosive environments. Water cooling also permits power supplies to be stacked in high density equipment racks where air cooling is not possible or desirable.

Designed for Safety
MS Series power supplies have extensive diagnostic functions -- all of which, when activated, take command to shut down the system. Diagnostic functions include phase loss, excessive thermal conditions, over voltage trip, over current trip, fuse clearing, and program line. Program line monitors externally applied analog set point signals to insure they are within the specified range. Upon a diagnostic fault condition, main power is disconnected and the diagnostic condition is latched into memory. Pressing the clear key clears the memory. All diagnostic functions can be monitored through a rear connector. Furthermore, control functions can also be set through the rear connector to allow simultaneous control of one or more MS Series units. MS Series supplies have three levels of over voltage/current protection: shutdown of controlling insulated gate bipolar transistors (IGBT’s), disconnect of main power, and input fuses. After an over voltage/current trip condition, the supply must be reset.

MSA Version Front Panel
MSA models provide stepless analog control from front panel knobs. With a simple configuration change, the power supply can be programmed from the rear I/O connector or through software on one of the communication buses.

MSD Version Front Panel
MSD models provide all of the features of the MSA Version plus these models can be configured for keypad entries and up/down presses for voltage, current, over voltage trip, and over current trip. Key strokes are kept to a minimum by a repeat last command feature. MSD Series power supplies are well suited for laboratory applications requiring enhanced control.

MSD Series models have one-hundred memory states available to program voltage, current, over voltage trip, over current trip, and time period. Set points can be auto sequenced with time or external triggering. Special programming codes allow repeating to create a power function generator. The first 10 memory states are displayed on the front panel to simplify programming tasks. MSD Series power supplies offer an analog input to modulate the voltage or current setting using piecewise linear approximation. This feature enables the voltage or current setting to be adjusted by a sensor input, such as a thermistor, or by monitoring its own voltage or current. Modulation allows the output to be tailored for advanced process control applications, battery charging, and source emulation.

MSC Version Front Panel
MSC models hava a blank front panel and only allows control from the rear I/O connector or by RS-232/GPIB/USB/Ethernet communications. These models are intended for process control applications where front panel controls and displays are not required nor desired.

Magna-Power SoftwareRemote Interface Software
The Remote Interface Software is shipped with all MS Series power supplies. The software provides the user with a quick method to operate a Magna-Power Electronics' power supply under computer control. The Remote Interface Software has six windows: the Virtual Control Panel, Command Panel, Register Panel, Calibration Panel, Firmware Panel, and Modulation Panel. The Virtual Control Panel emulates the front panel of the MS Series power supply, the Command panel programs and reads SCPI commands with user friendly buttons, the Register Panel programs and reads registers, the Calibration Panel enables calibration of the digital potentiometers, the Firmware Panel enables the program stored internal to the power supply to be upgraded, and the Modulation Panel eases programming of modulation parameters.
30 kW Models
Model Voltage (V) Current (A)
MSA16-1800 0-16 0-1800
MSA20-1500 0-20 0-1500
MSA25-1200 0-25 0-1200
MSA32-900 0-32 0-900
MSA40-750 0-40 0-750
MSA50-600 0-50 0-600
MSA60-498 0-60 0-498
MSA80-372 0-80 0-372
MSA100-300 0-100 0-300
MSA125-240 0-125 0-240
MSA160-186 0-160 0-186
MSA200-150 0-200 0-150
MSA250-120 0-250 0-120
MSA300-96 0-300 0-96
MSA375-78 0-375 0-78
MSA400-72 0-400 0-72
MSA500-60 0-500 0-60
MSA600-48 0-600 0-48
MSA800-36 0-800 0-36
MSA1000-30 0-1000 0-30
MSA1250-24 0-1250 0-24
MSA1500-19.8 0-1500 0-19.8
MSA2000-15.0 0-2000 0-15.0
MSA3000-9.6 0-3000 0-9.6
MSA4000-7.2 0-4000 0-7.2
45 kW Models
Model Voltage (V) Current (A)
MSA16-2700 0-16 0-2700
MSA20-2250 0-20 0-2250
MSA25-1800 0-25 0-1800
MSA32-1350 0-32 0-1350
MSA40-1125 0-40 0-1125
MSA50-900 0-50 0-900
MSA60-747 0-60 0-747
MSA80-558 0-80 0-558
MSA100-450 0-100 0-450
MSA125-360 0-125 0-360
MSA160-279 0-160 0-279
MSA200-225 0-200 0-225
MSA250-180 0-250 0-180
MSA300-144 0-300 0-144
MSA375-117 0-375 0-117
MSA400-108 0-400 0-108
MSA500-90 0-500 0-90
MSA600-72 0-600 0-72
MSA800-54 0-800 0-54
MSA1000-45 0-1000 0-45
MSA1250-36 0-1200 0-36
MSA1500-27.7 0-1500 0-27.7
MSA2000-22.5 0-2000 0-22.5
MSA3000-14.4 0-3000 0-14.4
MSA4000-10.8 0-4000 0-10.8

60 kW Models
Model Voltage (V) Current (A)
MSA16-3600 0-16 0-3600
MSA20-3000 0-20 0-3000
MSA25-2400 0-25 0-2400
MSA32-1800 0-32 0-1800
MSA40-1500 0-40 0-1500
MSA50-1200 0-50 0-1200
MSA60-996 0-60 0-996
MSA80-744 0-80 0-744
MSA100-600 0-100 0-600
MSA125-480 0-125 0-480
MSA160-372 0-160 0-372
MSA200-300 0-200 0-300
MSA250-240 0-250 0-240
MSA300-192 0-300 0-192
MSA375-156 0-375 0-156
MSA400-144 0-400 0-144
MSA500-120 0-500 0-120
MSA600-96 0-600 0-96
MSA800-72 0-800 0-72
MSA1000-60 0-1000 0-60
MSA1250-48 0-1250 0-48
MSA1500-39.6 0-1500 0-39.6
MSA2000-30.0 0-2000 0-30.0
MSA3000-19.2 0-3000 0-19.2
MSA4000-14.4 0-4000 0-14.4

75 kW Models
Model Voltage (V) Current (A)
MSA16-4500 0-16 0-4500
MSA20-3750 0-20 0-3750
MSA25-3000 0-25 0-3000
MSA32-2250 0-32 0-2250
MSA40-1875 0-40 0-1875
MSA50-1500 0-50 0-1500
MSA60-1245 0-60 0-1245
MSA80-930 0-80 0-930
MSA100-750 0-100 0-750
MSA125-600 0-125 0-600
MSA160-465 0-160 0-465
MSA200-375 0-200 0-375
MSA250-300 0-250 0-300
MSA300-240 0-300 0-240
MSA375-195 0-375 0-195
MSA400-180 0-400 0-180
MSA500-150 0-500 0-150
MSA600-120 0-600 0-120
MSA800-90 0-800 0-90
MSA1000-75 0-1000 0-75
MSA1250-60 0-1250 0-60
MSA1500-49.5 0-1500 0-49.5
MSA2000-37.5 0-2000 0-37.5
MSA3000-24.0 0-3000 0-24.0
MSA4000-18.0 0-4000 0-18.0


Low Voltage, High Current Models

Model Voltage (V) Current (A) Power
MSA5-2700 0-5 2700 14 kW
MSA5-3600 0-5 3600 18 kW
MSA10-2700 0-10 2700 27 kW
MSA10-3600 0-10 3600 36 kW
MSA10-4500 0-10 4500 45 kW
