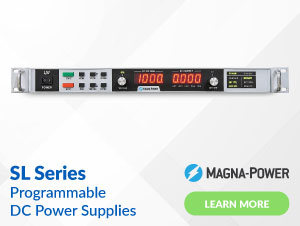

SL SERIES
Programmable DC Power Supply

Key Facts

  • 109 models
  • 1U rack-mount
  • 1.5 kW, 2.6 kW, 4 kW, 6 kW, 8 kW power levels
  • 5 Vdc to 1500 Vdc output voltage
  • 1.5 Adc to 250 Adc output current
  • 2-3 week build-time
  • UL/CSA listed, CE Mark
  • Designed and manufactured in the USA

SL Series Datasheet Download Here


DEFINING A NEW CLASS OF 1U POWER SUPPLIES
Current-Fed Topology, Up to 8 kW, Flexible Options, Made in the USA

The SL Series builds on nearly 40 years of power supply innovation at Magna-Power, designed from the ground up to meet the highly reliable power dense demands of ATE system integrators through Magna-Power's signature current-fed power processing topology. Utilizing state-of-the-art semiconductors and innovative internally designed and manufactured heat sinks, the SL Series offers industry-leading 1U (1.75” height) programmable power levels with models at 1.5 kW, 2.6 kW, 4 kW, 6 kW, and 8 kW, while still maintaining an ambient operating temperature rating up to 50°C.


MODELS
Choose from 109 SL Series Models

There are 109 different models in the SL Series spanning power levels: 1.5 kW, 2.6 kW, 4 kW, 6 kW, 8 kW.
To determine the appropriate model:

  1. Select the desired Max Voltage (Vdc) from the left-most column.
  2. Select the desired Max Current (Adc) from the same row that contains your desired Max Voltage.

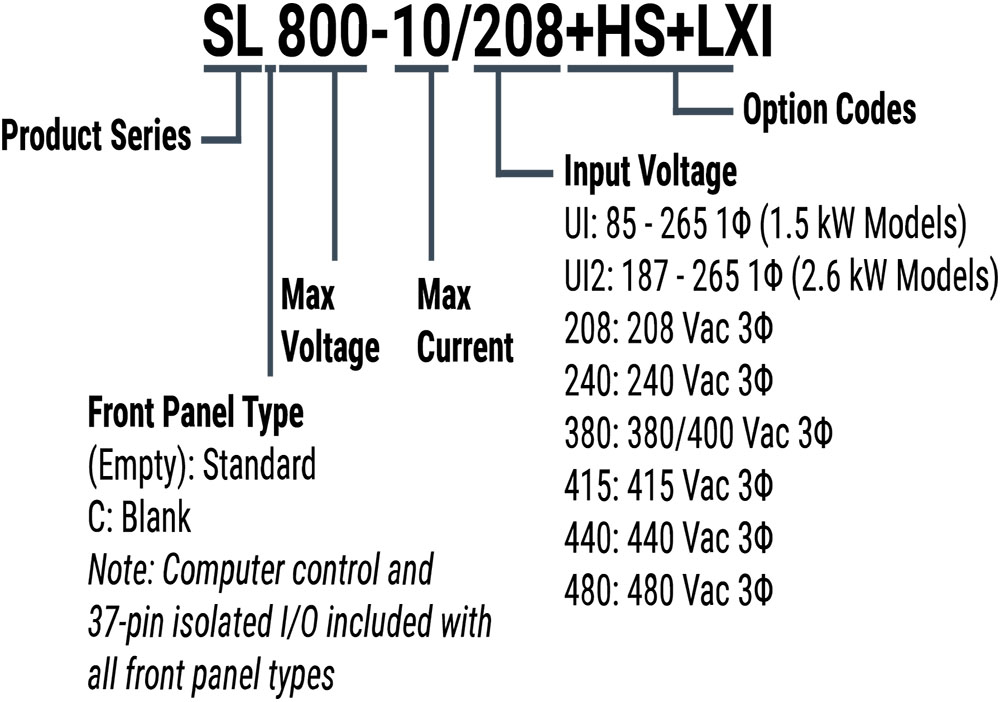

  3. Construct your model number according to the model ordering guide.
  1.5 kW 2.6 kW 4 kW 6 kW 8 kW
Max Voltage (Vdc) Max Current (Adc) Max Current (Adc) Max Current (Adc) Max Current (Adc) Max Current (Adc) Ripple (mVrms) Efficiency
5 250 N/A N/A N/A N/A 50 84%
10 150 250 N/A N/A N/A 40 89%
16 93 162 250 N/A N/A 35 89%
20 75 130 200 250 N/A 40 90%
25 60 104 160 240 N/A 40 91%
32 46 81 125 186 250 40 91%
40 37 65 100 150 200 40 91%
50 30 52 80 120 160 50 92%
60 25 43 66 100 133 60 93%
80 18 32 50 75 100 60 93%
100 15 26 40 60 80 60 93%
125 12 20 32 48 64 100 93%
160 9 16 25 36 50 120 93%
200 7.5 13 20 30 40 125 94%
250 6 10.4 16 24 32 130 94%
300 5 8.6 13.2 20 26.4 160 94%
375 4 6.9 10.4 16 21.3 170 94%
400 3.7 6.5 10 15 20 180 95%
500 3 5.2 8 12 16 220 95%
600 2.5 4.3 6.4 10 13.3 250 95%
800 1.8 3.2 5 7.5 10 300 95%
1000 1.2 2 3.2 4.8 6.4 375 95%
1250 1.2 2 3.2 4.8 6.4 375 95%
1500 1 1.7 2.6 4 5.3 400 95%

AC Input Voltage (VAC Input Current Per Phase (Aac Input Current Per Phase (Aac Input Current Per Phase (Aac Input Current Per Phase (Aac Input Current Per Phase (Aac
UI (85 - 265 Vac, 1Φ) 21 - 7 N/A N/A N/A N/A
UI2 (187 - 265 Vac, 1Φ) N/A 16 - 12 N/A N/A N/A
208/240 Vac, 3Φ 6 9 14 21 28
380/415 Vac, 3Φ 4 6 8 12 15
440/480 Vac, 3Φ 3 5 7 10 13
