XR SERIES
Programmable DC Power Supply

Key Facts

  • 136 models
  • 2U rack-mount
  • 2 kW, 4 kW, 6 kW, 8 kW, 10 kW power levels
  • 5 Vdc to 10000 Vdc output voltage
  • 0.2 Adc to 600 Adc output current
  • SCPI Remote Programming API
  • High Accuracy Measurements
  • Programmable Protection Limits
  • NI LabVIEW™ and IVI Driver

XR Series Data Sheet Download Here


UNPARALLELED 2U PROGRAMMABLE POWER SUPPLY VOLTAGE-CURRENT RANGE
Models up to 10,000 Vdc, up to 600 Adc, with Current-Fed Topology and Flexible Options

The XR Series was designed from the ground up for high reliability and industry leading 2U (3.5” height) rack-mount programmable power levels, at: 2 kW, 4 kW, 6 kW, 8 kW, and 10 kW. The XR Series features the largest voltage range in Magna-Power's product offering, from 5 Vdc to 10,000 Vdc, all utilizing the company's signature current-fed power processing to deliver robust power conversion. In addition, high accuracy programming and monitoring levels allow confidence in power supply measurements, eliminating the need for external power meters.


MODELS
Choose from 136 XR Series Models

There are 136 different models in the XR Series spanning power levels: 2 kW, 4 kW, 6 kW, 8 kW, 10 kW.

To determine the appropriate model:

  1. Select the desired Max Voltage (Vdc) from the left-most column.
  2. Select the desired Max Current (Adc) from the same row that contains your desired Max Voltage.

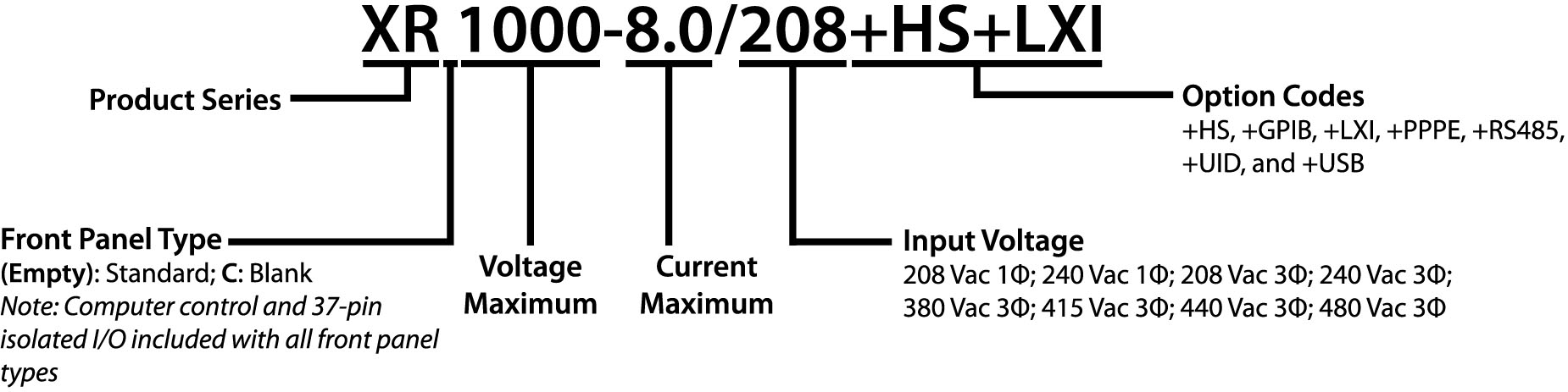

  3. Construct your model number according to the model ordering guide.
  2 kW 4 kW 6 kW 8 kW 10 kW
Max Voltage (Vdc) Max Current (Adc) Max Current (Adc) Max Current (Adc) Max Current (Adc) Max Current (Adc) Ripple (mVrms) Efficiency
5 375 600 N/A N/A N/A 50 80%
10 200 375 600 N/A N/A 50 84%
16 125 250 375 500 600 50 84%
20 100 200 300 375 500 45 87%
25 80 160 240 320 400 45 88%
32 62 124 186 250 310 40 88%
40 50 100 150 200 250 40 88%
50 40 80 120 160 200 50 90%
60 33 66 100 133 166 60 91%
80 25 50 75 100 125 60 91%
100 20 40 60 80 100 60 91%
125 16 32 48 64 80 100 91%
160 12 24 36 50 60 120 91%
200 10 20 30 40 50 125 92%
250 8 16 24 32 40 130 92%
300 6.6 13.2 19.8 26.4 33.3 160 92%
375 5.3 10.6 15.9 21.3 26.5 170 92%
400 5 10 15 20 25 180 92%
500 4 8 12 16 20 220 93%
600 3.3 6.6 9.9 13.3 16.5 250 93%
1000 2 4 6 8 10 350 93%
1250 1.6 3.2 4.8 6.4 8 375 93%
1500 1.3 2.6 4.0 5.3 6.6 400 93%
2000 1 2 3 4 5 450 93%
3000 0.6 1.3 2 2.6 3.3 Contact 93%
4000 0.5 1 1.5 2 N/A 6500 93%
6000 0.33 0.66 1 1.33 N/A 7500 93%
8000 0.25 0.5 0.75 1 N/A 8500 93%
10000 0.2 0.4 0.6 0.8 N/A 9500 93%

AC Input Voltage (Vac) Input Current Per Phase (Aac) Input Current Per Phase (Aac) Input Current Per Phase (Aac) Input Current Per Phase (Aac) Input Current Per Phase (Aac)
208/240 Vac, 1Φ 17 N/A N/A N/A N/A
208/240 Vac, 3Φ 8 15 22 29 35
380/415 Vac, 3Φ 5 9 12 16 19
440/480 Vac, 3Φ 4 8 11 14 17
