The FieldFox B-Series: Where you’re going, you don’t need a test bench.

The signals are crowded. And each signal is growing more complex. This would be a challenge back in the test lab, where you could unpack the noise on a fully-equipped workbench.

But the real world doesn’t fit in a lab. You need to get out into the field. You need a FieldFox.

Introducing Keysight’s latest B-series FieldFox. New bandwidth capabilities. Same rugged convenience. These millimeter-wave wideband signal analyzers are your all-in-one handheld solution, now covering frequency up to 32/44/50/54 GHz with up to 120-MHz real-time analysis bandwidth.

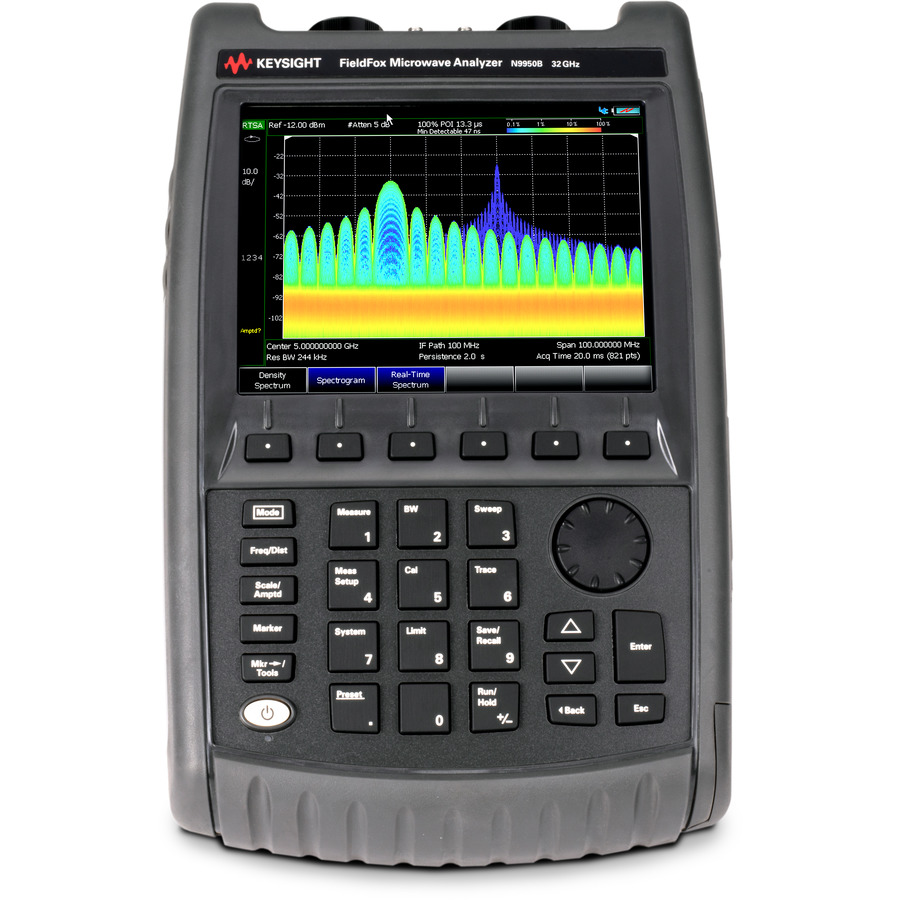

Keysight's FieldFox N995xB-series Combination Analyzers


Keysight's FieldFox N995xB-series Combination Analyzers

Model Description
N9950B Cable & Antenna Analyzer 32 GHz CAT VNA AS 2.4 mm Test Port N995xB Series
N9951B Cable & Antenna Analyzer 44 GHz CAT VNA AS 2.4 mm Test Port N995xB Series
N9952B Cable & Antenna Analyzer 50 GHz CAT VNA AS 2.4 mm Test Port N995xB Series
N9953B Cable & Antenna Analyzer 54 GHz CAT VNA AS 2.4 mm Test Port N995xB Series

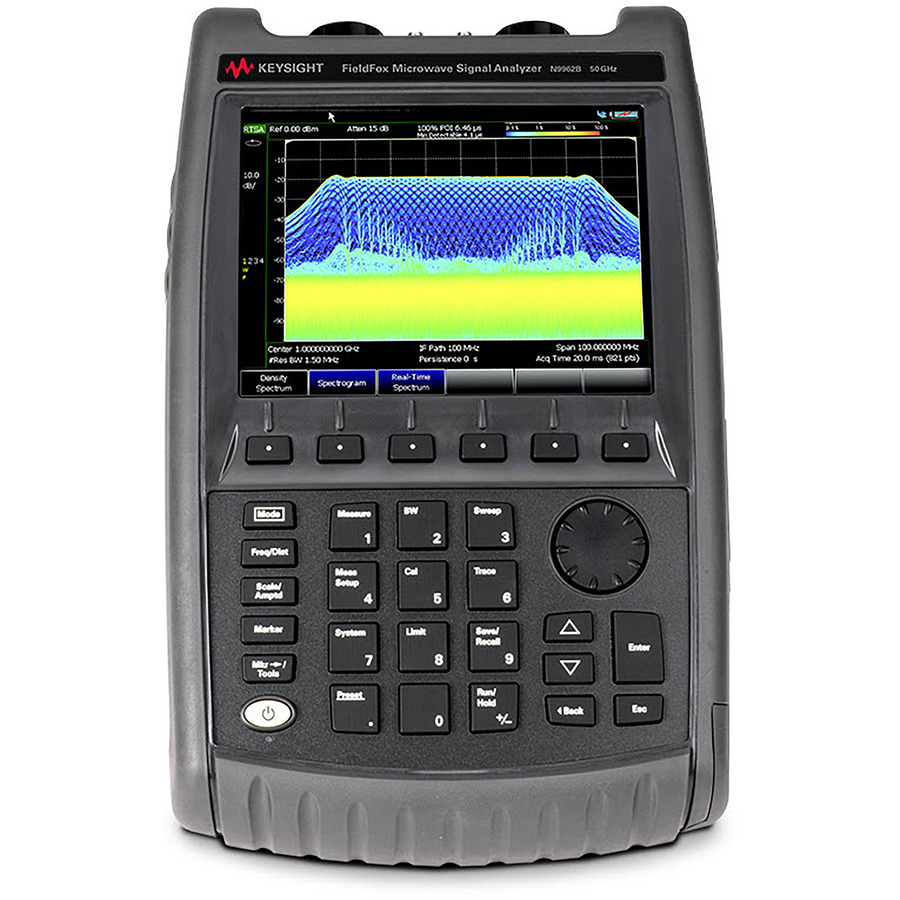

Keysight's FieldFox N996xB-series Spectrum Analyzers

Keysight's FieldFox N996xB-series Spectrum Analyzers

Model Description
N9960B Handheld Spectrum Analyzer 9 kHz to 32 GHz 2.4 mm Test Port N996xB Series
N9961B Handheld Spectrum Analyzer 9 kHz to 44 GHz 2.4 mm Test Port N996xB Series
N9962B Handheld Spectrum Analyzer 9 kHz to 50 GHz 2.4 mm Test Port N996xB Series
N9963B Handheld Spectrum Analyzer 9 kHz to 54 GHz 2.4 mm Test Port N996xB Series


FieldFox N995xB-series Combination Analyzers and N996xB-series Spectrum Analyzers

  • Configure for your needs: 32 GHz, 44 GHz, 50 GHz, and 54 GHz frequency
  • Test bench performance for the field: 120-MHz real-time analysis bandwidth
  • Allows 5G, satellite and radar operators to make true RF coverage measurements
  • Phased array antenna support allows beamforming verification
  • Highly efficient radar and EW systems diagnostics
  • Field-swappable battery lasts up to 4 hours per charge

N995xB combination analyzers offer optional CAT and Vector Network Analysis (VNA) capabilities

  • VNA time domain, transmission/reflection
  • VNA full 2-port S-parameters
  • 1-port mixed-mode S-parameters
  • Cable and antenna analyzer (standard equipment on base model)
  • Vector voltmeter
