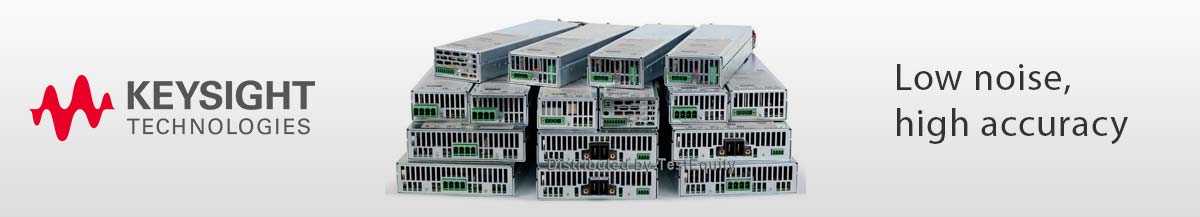

High Power Modules for Keysight N6700 Modular Power SystemKeysight Technologies has introduced seven new high-power modules for its popular N6700 modular power system. The new modules expand the ability of test-system integrators and R&D engineers to deliver multiple channels of high power (up to 500 watts) to devices under test.

With the addition of the new modules, engineers and integrators can now choose from a total of 34 modules for the N6700 MPS. This breadth of choices gives engineers and integrators in the aerospace/defense, consumer electronics, computers and peripherals, communications, semiconductor, and automotive industries the flexibility to optimize performance, power and price to meet test needs.

The new modules, together with the 27 modules already offered, comprise a family ranging in power from 18 W to 500 W at four different performance levels: basic, high performance, precision, and source/measure unit. R&D engineers and test-system integrators can mix and match any of these 34 modules in any of the four MPS mainframes (three for automated test and one for R&D ) to create a DC power system unique to their needs. Systems can be from one to four outputs, at prices starting at $1,000 per output.

Benefits and features include:

  • Fast output changes (0 to 50 V in less than 2 ms) that are up to 50 times faster than other programmable power supplies.
  • Advanced, fast digitized measurements that extend from milliamps to 50 amps.
  • Autoranging output capabilities that enable one power supply to do the job of several traditional power supplies.
  • High-speed test extensions that offer an oscilloscope-like digitizer that simplifies system configuration and increases measurement accuracy.
  • With a single command, the ability to switch the output from a positive voltage to a negative voltage without changing wiring due to optional built-in polarity reversal relays.

All of the Keysight N6700 mainframes are fully compliant with the LXI Class C specification. They have USB 2.0, 10/100 Base-T Ethernet and GPIB interfaces as standard features, allowing quick and simple connectivity to a PC or a network. They can also be remotely operated from any Web browser.

The new N6700 MPS modules are available now. Click the model numbers below for more information.

Model Number Series/Performance
Level
Max
Power
Voltage Current
N6755A High-performance 500 W 20 V 50 A
N5756A High-performance 500 W 60 V 17 A
N6763A Precision 300 W 20 V 50 A
N6764A Precision 300 W 60 V 20 A
N6765A Precision 500 W 20 V 50 A
N6766A Precision 500 W 60 V 17 A
N6777A Basic 300 W 150 V 2 A
