Keysight Streamline Series

Balance Deadlines, Productivity, Budget and Bench Space.

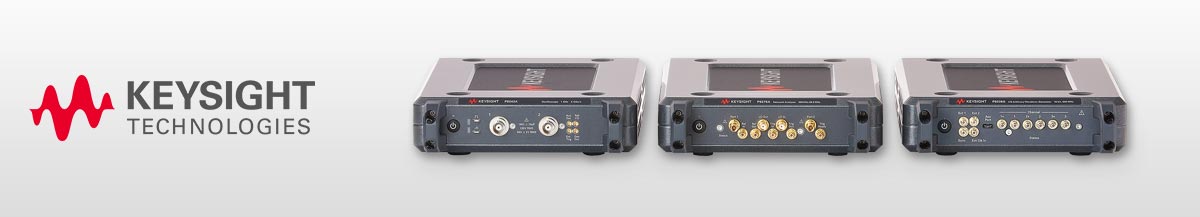

Keysight Streamline Series Oscilloscopes and VNAs

Move confidently across every stage of your product’s development lifecycle by leveraging accurate and repeatable measurements, automated code capability, and a consistent, intuitive user experience. With comprehensive Keysight Services including calibration, education and consulting, these instruments enhance your solution to help you accelerate technology adoption and lower costs.

P924xA USB InfiniiVision Oscilloscopes

Keysight P924xA USB InfiniiVision Oscilloscopes

  • 200 MHz, 500 MHz, and 1 GHz bandwidth options
  • 2 analog channels, 5 GSa/s sample rate
  • 1,000,000 wfms/s update rate
  • Zone triggering, 20 MHz AWG, 3-digit voltmeter, 8-digit counter, Protocol analysis and trigger
  • Frequency Response Analysis. with integrated WaveGen
  • Comparable to Keysight 3000T Series

• P9241A (200 MHz)   • P9242A (500 MHz)   • P9243A (1 GHz)

P937xA USB Vector Network Analyzers

Keysight P937xA USB Vector Network Analyzers

  • 300 KHz to 4.5 GHz / 6.5 GHz
  • Full two-ports (extendable)
  • Same calibration, metrology and GUI as other Keysight VNAs
  • Benchtop capabilities and options such as: automatic fixture removal, time domain analysis, scalar mixer/converter measurements, and N-port calibrated measurements
  • Supports all Keysight mechanical calibration kits and ECal modules

• P9370A (4.5 GHz)   • P9371A (6.5 GHz)

The functionality of a Keysight benchtop, in a small, portable form factor

The Keysight Streamline USB Series allows you to leverage accurate and repeatable measurements, and benefit from automated code capability and a consistent, intuitive user experience. The P924xA InfiniiVision Oscilloscopes and P937xA Vector Network Analyzers are ideal for:

  • The R&D bench
  • Manual testing of passive components (antenna, filter, duplexer) for A/D and wireless industries
  • Portability between labs and test facilities
  • General purpose component manufacturing
  • Development test stations
  • Wireless device DVT and manufacturing test
  • I/Q signal generation for transceivers, modulators including 5G
  • Classified environments because no data is stored on the instrument
  • Light manufacturing labs
  • Crowded bench or equipment rack
