• 2.8” color TFT screen
• Use PanelPilot software, to setup and customize the display.
• Multiple configurations included free
• Programmable via the USB interface
• Simple panel mounting solution
• Operating voltage of 4V-30V d.c. (see note)
• Measures 4 - 20mA current loop (also 10-50mA or 0-50mA possible)
• Digital hold

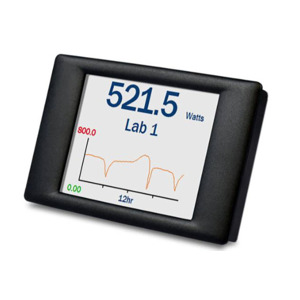

The SGD 28-M420 is a programmable process meter featuring dual 4-20mA analogue inputs, alarm outputs and 2.8” TFT color touchscreen display. Configured using the free PanelPilot M Software for Windows, choose from an ever-increasing number of configurations including bar-graph, tank level, analogue style and trend graphs. Then customize colors, text labels, units and input scaling before uploading to a display via USB.
