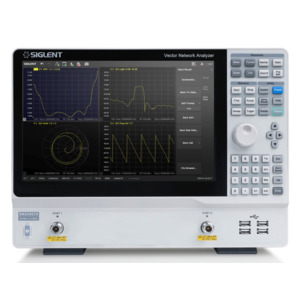

SNA5032A Vector Network Analyzer

SNA5032A Specs:

• Ports: 2
• Frequency range: 100 kHz – 26.5 GHz

SNA5000A series:

• Frequencey Resolution: 1 Hz, IFBW 10 Hz - 3 MHz
• Dynamic Range: 125 dB
• Output Level Range: -55 dBm to +10 dBm
• Supports scattering, differential, time domain parameter measurements and more
• Effective for determining Q factor, bandwidth and insertion loss of a filter
• Five sweep types: linear frequency, log frequency, power sweep, CW-time and segment sweep
• Types of calibration: Response, enhanced response, TRL and more
• Supports bias tees
• Interface: LAN, USB Device, USB Host(USB-GPIB)
• Remote control: SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet/WebServer
• 12.1-inch touch screen

The SIGLENT SNA5000A series of Vector Network Analyzers have a frequency range up to 26.5 GHz, and support 2/4-port scattering-parameter, differential-parameter, and time-domain parameter measurements.

The SNA5000A series of VNAs are effective instrumentation for determining the Q-factor, bandwidth and insertion loss of a filter. They feature impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation and adapter removal/insertion adjustments. The SNA5000A have five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode and Segment-Sweep mode. These also support scattering-parameter correction of SOLT, SOLR, TRL, Response and Enhanced Response for increased flexibility in R&D and manufacturing applications.

Several versions available
The SNA5000A is available with either two or four ports, and a maximum bandwidth of up to 26.5 GHz.
