Highlights:

• Capture Rate: 27,000 FFT/s, signals down to 2.5 µs
• RF Spectrum View: viewing signals in the frequency domain where signal amplitude, bandwidth, and harmonic qualities can be studied
• Spectrogram View: identify intermittent signals and historical signal data in a comprehensive view (A multi-dimensional "waterfall" display representing frequency, time, and amplitude)

Field Master MS2080A features an optional RTSA with up to 40 MHz analysis bandwidth. Ideal for capturing short duration and digitally modulated signals that can be hard to identify in standard spectrum analyzer mode, the RTSA enhances the interference hunting capability of the Field Master MS2080A.

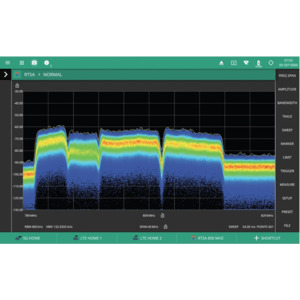

With a capture rate of 527,000 FFT/s, signals down to 2.5 µs are displayed at full amplitude and down to nine µs with reduced level accuracy. A spectrum density display uses color to maintain and present users with greater insight of the RF spectrum activity by maintaining the image of spectral occupancy over time. It is even possible to identify low power signals that would otherwise be masked by higher power signals in the spectral density view.

Open the spectrogram display to view a history of activity in the spectrum, capturing short lived and intermittent signals. For extended time monitoring and analysis, record traces to internal memory or to an external drive for later play back on the instrument or offline.
