Rohde & Schwarz NGP824COMA DC Power Supply Bundle 4 Channel 800 W 64 V 10 A NGP800 Series

32003.1 MFG #: NGP824COMA
$5,245.00 / EA
  • Amps: 10 A
  • Voltage: 64 V
  • Watts: 800 W
  • Condition: New
  • Drill Down Description: DC Power Supply Bundle, 4 Channel, 800 W, 64 V, 10 A, NGP800 Series
  • Keywords: testequity, rohde&schwarz, rohde and schwarz, rohde & schwarz, power supply, quadcore power, ngp800, ngp824
  • Model: NGP824COMA
  • Promo Text: <a href=/rohdeandschwarz-full-bench-high-value" onclick="var trackerName = ga.getAll()[0].get('name');ga(trackerName + '.send', <a href=inch/rohdeandschwarz-full-bench-high-valueinch onclick=inchvar trackerName = ga.getAll()[0].get('name');ga(trackerName + '.send','event','Sub-Promo-RohdeAndSchwarz','Click','2020-Oct-02-rohdeandschw
  • Quote Required: No
  • Web Meta Description: The NGP800 DC power supply series, comprising five models with 400 W or 800 W, provides maximum power at a variety of operating points. The two or four 200 W out-puts can each supply up to 64 V or up

QTY
  • Description

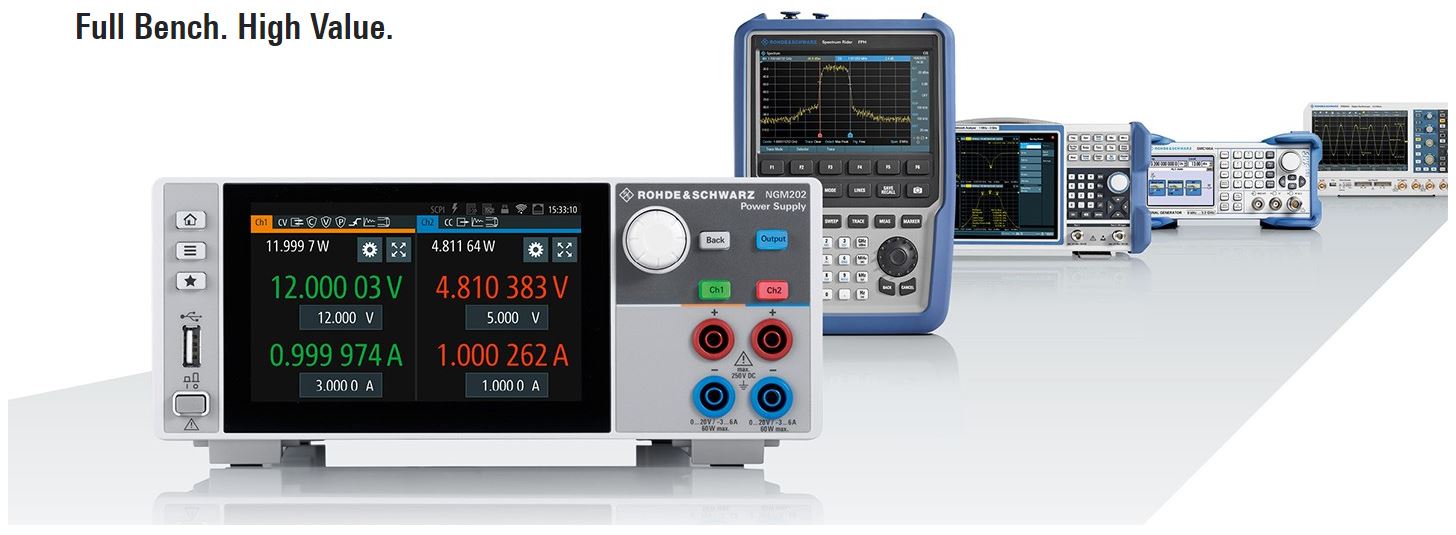

    <a href="/rohdeandschwarz-full-bench-high-value" onclick="var trackerName = ga.getAll()[0].get('name');ga(trackerName + '.send','event','Sub-Promo-RohdeAndSchwarz','Click','2020-Oct-02-rohdeandschwarz-full-bench-high-value');" target="_self"><img alt="" src="https://assets.testequity.com/te1/Images/new2/rs/ROH-FullBenchHighValue-PP2020.jpg" style="padding-top: 20px; padding-bottom: 20px;" /></a>

    Rohde & Schwarz NGP824COMA Bundle Includes:

    • NGP824 4-Channel Power Supply 64V/10A
    • K102 Wireless LAN remote control
    • NGM-K103 Digital Trigger I/O
    • NGM-K107 Analog Input




    R&S NGP824COMA NGP800 Series DC Power Supply


    Comprising five powerful models

    The NGP800 DC power supply series, comprising five models with 400 W or 800 W, provides maximum power at a variety of operating points. The two or four 200 W out-puts can each supply up to 64 V or up to 20 A. Electrically equivalent and galvanically isolated outputs can be wired in series or parallel for up to 250 V or 80 A.

    Synchronizing your outputs, performing waveform tests and logging data for in-depth analysis – all this becomes easy with the R&S®NGP800 power supply series.

    An intuitive operating concept and a large touchscreen allow you to enter values much faster and to display statis-tics in realtime. All NGP800 power supplies include remote sense ter-minals, USB and a LAN interface. A user-installable GPIB interface, a digital trigger I/O, an analog input and a wire-less LAN interface are optional, making these instruments great on the bench or in an automated test system.
