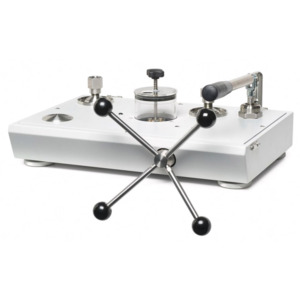

Fluke P5515-140M-EP Hydraulic Test Pump

Features and Specifications

• Range: 140 Mpa (20K Psi)
• O Rings: Ethylene Propylene
• Reservoir Tube: Anodized Aluminum
• Built-in pump for large volume applications and system priming
• High quality screw press for fine pressure control
• Acrylic reservoir for visibility of fluid level and quality
• Test port adapters which require no PTFE tape or wrenches
• Built-in drain plug for removal of old fluid
• Sturdy carrying case with lid
• Compatible with a wide range of fluids including sebacate, mineral oil, and distilled water

Fluke's P5515-140M-EP Calibration hydraulic test pump is used for checking pressure measuring instruments against master test gauges, indicators or transducers. This cost effective instrument, which includes several features from our popular line of hydraulic deadweight testers, are capable of easily generating high pressures and provide precise control for important calibration requirements.

The standard system is designed for use with a wide range of fluids, however, the reservoir tube is Acrylic, and the O-ring seals are Nitrile; use of solvents, fuel oils, brake fluids or other, similar aggressive fluids can damage the seals and the reservoir tube. However, the P5515-140M-EP is an alternative version of the standard instrument, which offers increased compatibility with other fluids by the use of Ethylene Propylene O Rings and a Anodized Aluminum Reservoir Tube.

What's in the Box

• P5515-140M-EP Hydraulic Test Pump
