• Description

Product Features

    Pulse, Pattern, Arbitrary Function, Noise Generator

    • 330 MHz pulses
    • 500 MHz sine waves
    • 2.5 GSa/s sample rate and 14 bit vertical resolution
    • White Gaussian noise with selectable crest factor
    • Glitch-free change of timing parameters
    • Arbitrary bit shaped pattern allowing emulation of real world conditions like capacitive load of channels
    • 660 Mbit pattern

    The new 81160A provides innovative functionality and streamlined setup to help engineers complete testing faster!

    This 4-in-1 device offers a new speed class and increased test efficiency which can be used in such applications as: Pattern generation, Digital & mixed signal device testing, HDMI compliance testing, Sensor simulation, Clock signal generation, Radar distance testing, Disc drive tests, Capturing & reproducing live signals & more!

    A 4-in-1 device for accelerated and accurate insight into your device

    • Create pulse, sine, square, ramp, noise and arbitrary waveforms to test your device—not the source.
    • Emulate effects like capacitive load of the channel, asymmetric delay, crossing point deviations, duty cycle distortions, arbitrary transition times, level noise, delays from/to electrical idle by defining the transitions so that the previous bit influences the current bit.
    • A 2-Channel version can be used either as 2 independent generators or as time synchronized coupled or added.
    • Integrated in one instrument, which increases signal performance, minimizes cabling, space and test time.
    • Programming language compatible with Keysight 81101A, 81104A, 81110A and 81150A.
    • Quad versatility, optimized signal fidelity up to 660 Mbit/s

    Generate the signal you need

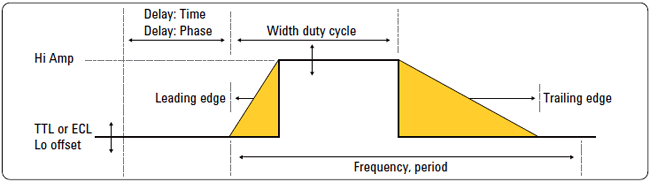

    All parameters can be selected and edited with the Keysight Pulse Pattern Generators
