Amprobe TIC 300 PRO High-Voltage Detector
MSHA certified and intrinsically safe, the Amprobe TIC 300 PRO with VolTect alert is a rugged, reliable, non-contact, high-voltage tester for utility, industrial, and safety applications up to 122kV. Select low or high voltage levels to verify the presence of voltage without contacting the energized conductor. All functionality is available through push buttons designed for easy use with PPE gloves. A universal adapter Hot Stick TIC 410A is available for voltage higher than 1500 VAC.

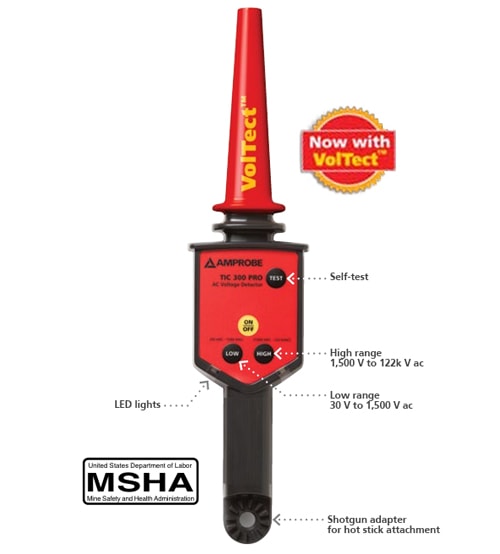

Features:
Verifies presence of voltage without contacting the conductor
VolTect alert warns when voltage is present
Push button self-test verifies that tester is working properly
Ergonomic design includes a convenient handle and a universal adapter for use with TIC 410A Hot Stick attachment to extend reach
Easy to use even when wearing heavy gloves and full PPE
Drop-proof to 6 feet (1.8 m)
Intrinsically safe and MSHA certified
Powered by 9 volt alkaline battery
Specifications:
Simple two level electricity tester provides:
Low voltage - 30 to 1500 VAC
High voltage - 1500 VAC to 122 kV ACDuty Cycle: Continuous
Response Time: Instantaneous
Frequency Response: 50/60 Hz

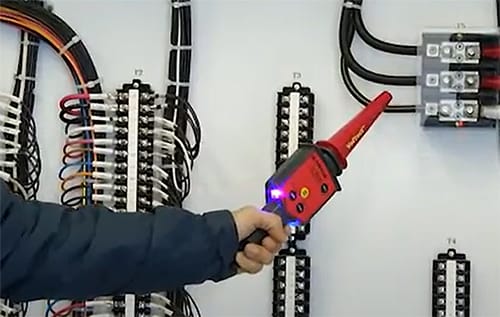

VolTect Alert
VolTect detects voltage across low, medium, and high-voltage applications, providing bright visual and loud audible alerts. The device begins to blink and beep—starting slowly and increasing to a rapid, steady rate when near or in contact with an energized source. The TIC 300 Pro with VolTect is simple to operate: just press the button to activate.
Verify the Presence of Voltage

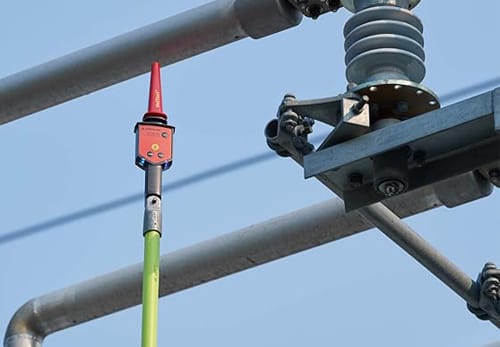

The TIC 300 PRO is a versatile and rugged utility tool designed for safely checking voltage presence across a wide range of electrical systems. Whether working on low-voltage setups like 120V or 240V circuits, or high-voltage infrastructure exceeding 5kV, technicians rely on it to determine if cables, transformers, switches, or other components are live before beginning repairs. Its dual-range capability includes a low-voltage setting (30 to 1500 VAC) for use in breaker panels, outlets, and wiring, and a high-voltage setting (1500 VAC to 122,000 VAC when paired with the TIC 410A Hot Stick) for transmission lines, power distribution equipment, and downed lines. Built to withstand the rigors of fieldwork, the TIC 300 PRO endures rough handling in utility trucks without compromising performance.

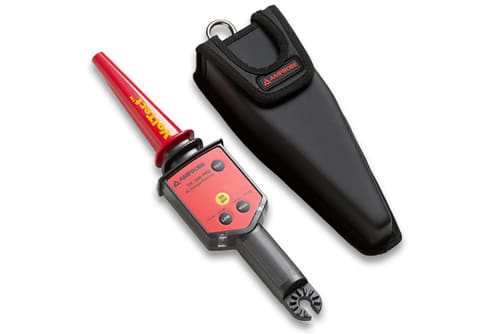

What's in the Box
TIC 300 PRO
Hard carrying case
9 V battery (installed)
