Digilent 410-436 Analog Discovery Pro 2450 Oscilloscope Multi-Instrument

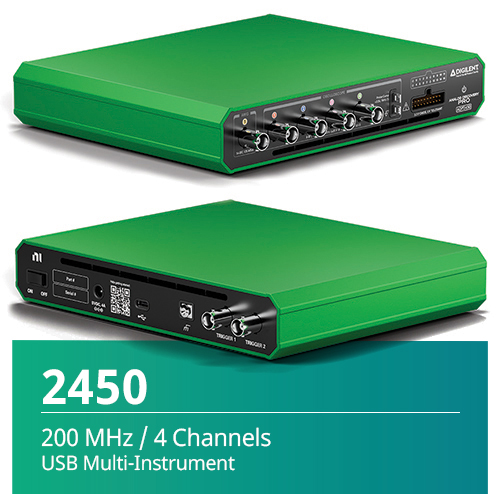

The Analog Discovery Pro 2450 offers high‑end test and measurement capabilities in a compact, budget‑friendly package. Built for engineers who need adaptable tools without compromising accuracy, this USB‑powered multi‑instrument blends sophisticated mixed‑signal features with seamless software control. From debugging embedded hardware to verifying circuit performance or creating custom automated test setups, the Analog Discovery Pro line equips you with everything you need to work efficiently and precisely.

Key Features

• Analog Inputs: Four BNC input channels with 12-bit resolution with up to ±25 V input range.

• Analog Inputs: 200+ MHz bandwidth, 600 MS/s interleaved.

• Analog Output: One BNC output channel with 14-bit resolution, ±5 V output range.

• Analog Output: 15+ MHz bandwidth, up to 125 MS/s.

• Dual Mode: Operate two devices simultaneously for 8 analog inputs, 32 digital I/O, 2 AWGs and low latency memory segmentation

• Automatic device phase adjustment between devices in Dual Mode.

• USB 3.1 (5 Gbps) transfer speeds.

• Triggering and cross triggering between instruments working simultaneously and independently.

• Deep Buffer Memory: 355 million samples (up to 535 million in the ADP2450) can be freely allocated between Analog and Digital systems.

• Memory Segmentation with only 1 μS latency between high-speed repeated captures.

• Digital I/O: Up to 1.2 GS/s sampling rate.

• Digital I/O: Many protocol interpreters including SPI, I2C, UART, 1-Wire, CAN, GPIB, I2S, LIN, JTAG, Manchester, SAE JA1850, and Quadrature Decoders.

• Metal enclosure with DIN rail support for easy mounting.

• 16 freely configurable Digital I/O generating and interpreting data.

• Bode plots, FFTs, Eye Diagrams, Impedance Analyzer, custom math.

• 14-bit Arbitrary Waveform Generator with 15+ MHz bandwidth supports everything from sine and square waves to phase and amplitude modulation in burst pulses.

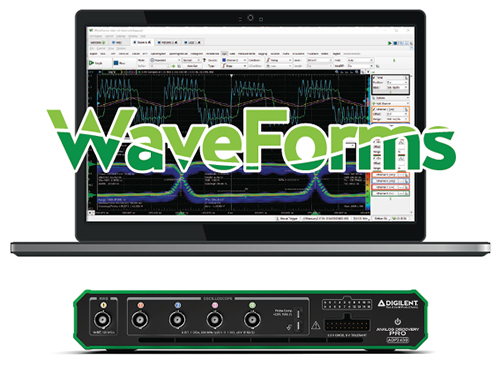

• Extensive and powerful software support with WaveForms and WaveForms SDK.

• Additional Highlights: Spectrum Analyzer, Network Analyzer, Data Logger, Logic Analyzer, Rapid Triggering

Smart. Capable. Balanced. — The ADP 4000 Series

The ADP 4000 Series offers two models, the 2440 and 2450 oscilloscopes, giving you a choice between 100 MHz and 200 MHz bandwidths to match your application needs. Both instruments provide four channels with 12‑bit resolution, a ±25 V input range, ten selectable hardware ranges, and advanced visualization tools including FFT, histogram, persistence, eye diagram, and analog‑to‑digital plots. A wide range of complex trigger modes, such as edge, pulse, timeout, glitch, transition, and window, ensures precise analog control over signal acquisition.

Everything You Need to Solve Real Problems

Designed for today’s engineering workflows, the Analog Discovery's Pro series provides USB 3.1 connectivity, generous segmented buffer memory, and coordinated cross‑triggering across instruments. Their rugged metal chassis and optional DIN‑rail mounting make them equally at home on the bench or in a professional test setup. When paired with Digilent’s WaveForms software and its scripting‑ready SDK, you gain the freedom to automate tasks, perform deep analysis, and push your designs forward without constraints.

What's in the Box

• One (1) Analog Discovery Pro (ADP2450) 410-436

• Four (4) T2200 200 MHz x1/x10 Oscilloscope Probes

• One (1) 2x10 keyed flywire MTE Cable

• Twenty (20) Minigrabbers with Leads

• One (1) 2-meter USB 3.2 Type C to C cable

• One (1) 5 V, 4 Amp Switching Power Supply kit with US and EU adapters

• One (1) Quick Start Guide

• One (1) Safety, Environment, and Regulatory Information document
