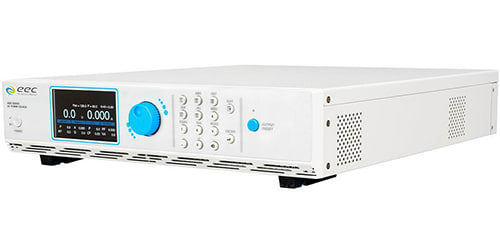

EEC 8505 AC/DC Power Source, Single Phase, 500 VA, 310 VAC, 5-1200 Hz Range, CE Listed, 8500 Series

AC+DC Power Source 500VA, output voltage up to 310VAC, output frequency ranging from 5-1200Hz, CE listed

8500 Series Key Features:

• High power density with reduced overall footprint.

• 14 pre-configured waveforms.

• Output voltage up-to 310VAC and output frequency from 5 - 1200 Hz.

• Advanced Mode option.

The EEC 8500 Series is the most power dense and functionality rich power source in our history, giving you improved capability, functionality, and a reduced footprint all in one series. This series is manufactured or simulating common grid faults, voltage dips, and other power abnormalities. The 8500 Series provides an output voltage up to 310VAC and an output frequency ranging from 5 Hz – 1,200 Hz making it the obvious solution for all kinds of applications. Not to mention, an enhanced interface to all models completely designed with the end-user in mind.

Our 8500 Sources can be configured as a simple AC Power Source in MANUAL mode, as an upgraded option with Standard mode or incorporating all functions with Advanced Mode. Advanced mode adds the benefits of a sweep of voltage, frequencies, transients, and DC bias over the course of a single sequence or several different tests.

The 8500 Series includes the following models:

The 8505 provides 1Ø AC power and is manufactured for simulating common grid faults, voltage dips, and other power abnormalities. Standard mode adds the ability to remotely control and program the power source. Advanced mode adds the benefits of a sweep of voltage, frequencies, transients, and DC bias over the course of a single sequence or several different tests.

• Safety Features

  • Safety Interlock: The Interlock function utilizes a set of closed contacts to enable the instrument’s output. If the Safety Interlock contacts are open the output of the instrument will be disabled. To disable the Safety Interlock function connect the Interlock Key into the Signal Input port located on the back of the instrument.
  • PLC Remote: Provides basic PLC functionality for remote control of TEST, RESET, and REMOTE INTERLOCK DISABLE functions, as well as MEMORY SELECTION. Allows for connecting PPE's for a safe workstation setup.

• Warranty: 5 Year Warranty

• Dimensions (W x H x D): 16.92" x 3.46" x 19.96" (430 x 88 x 500 mm)

• Weight: 33.1lbs (15KG)

In The Box

• Model 8505

• Interlock Disable Key (1505)

• USB Cable

• Shorting bar

• Input/output Terminal Protection Box

• Rack Mount (2U) x 2

• Handle for Rack (2U) x 2
