Fluke Networks FTK2000 Simplifiber Pro Basic Singlemode Verification Kit, SFP Series

Fluke Networks FTK2000 Simplifiber Pro Basic Singlemode Verification Kit

SimpliFiber Pro Optical Fiber Test Kits provide all the tools needed to verify proper installation and maintain fiber‑optic cabling systems. Each kit includes several specialized fiber platforms: the power meter, the multimode or singlemode sources, and the FindFiber Remote ID source. Every platform offers distinct, competitive features and is bundled into convenient kits designed to meet the demands of today’s technicians.

Product Highlights

• Single-port, simultaneous dual-wavelength feature completes testing in half the time and saves measurements from both wavelengths into one record

• CheckActive feature emits an audible tone and displays an icon when a live fiber is detected

• FindFiber Remote ID enables one individual to quickly identify cable connections or routings (requires remote ID sources sold separately)

• Calibrated for accuracy at six different wavelengths (850, 1300, 1310, 1490, 1550, 1625)

• Min/Max capability automates precision tracking of intermittent power fluctuations

• Large internal memory save 1000 results which enables continuous testing and recording

• LinkWare Cable Test Management software helps to analyze test results and create professional test reports

Optical Power Meter to Improve Fiber Testing

The SimpliFiber Pro meter features the ability to store a reference power level, enabling a direct display of fiber loss. It also includes an intuitive four‑button control panel, a large LCD screen, and a serial port. A single connector design allows simple network connection and straightforward reference power measurement. Time-saving capabilities such as CheckActive, FindFiber, and Min/Max make SimpliFiber Pro one of the best meters on the market. In addition, interchangeable connector adapters are available in the most commonly used styles. This makes the tester versatile across different fiber installations.

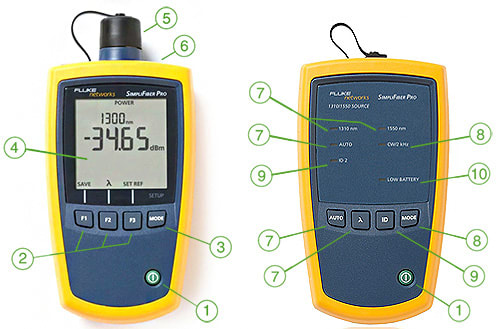

SimpliFiber Pro And Singlemode Features

1. On/off key

2. Softkeys (to functions on display)

3. Measurement mode

4. LCD Display

5. Input port

6. USB port

7. Auto wavelength mode

8. Continuous wave & 2kHz modulated output signals

9. Selects FindFiber mode

10. Low battery LED

11. Output port with SC adapter

Singlemode Source

The singlemode source is a dual wavelength 1310/1550 source and incorporates an 1310 nm and a 1550 nm with a FP laser emitter type. When combined with a SimpliFiber Prooptical power meter, the singlemode source enables:

• Measure power and loss at SC, LC, and ST connections using the dual-wavelength testing feature in which a 1310 and 1550 nm wavelength can be transmitted simultaneously
• Conveniently save measurements taken at both wavelengths into one record
• Eliminate time-consuming mistakes with the automatic wavelength detection ability
• Quickly identify patch panel cable routing without the assistance of a talk set and another technician

What's in the Box

FTK2000 Basic Singlemode Verification Kit:

• Simplifiber Pro Optical power meter

• 1310/1550 singlemode source

• Carrying case

• SC power-meter adapter
