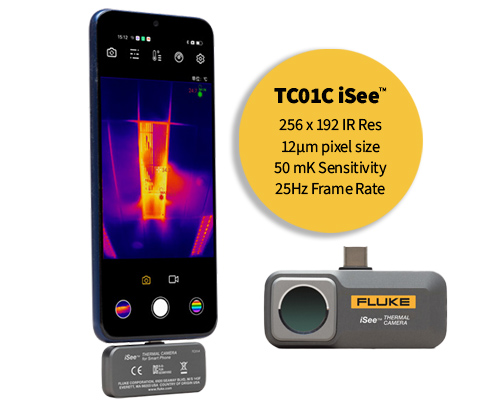

Fluke TC01C 25HZ Thermal Imaging Camera

Fluke TC01C iSee Mobile Thermal Camera for iOS smartphones is suitable for various applications due to its wide temperature range, up to 550 C (1022 F), including inspecting electrical cabinets, identifying HVAC issues, and installing underfloor heating. Fluke iSee boasts professional-grade image quality, comparable to high-end thermal cameras, with a 256 x 192 pixel thermal resolution and smooth video recording at a 25 Hz frame rate. The software offers comprehensive spot, line, and area temperature analysis for precise diagnostics.

Features

• IR resolution: 256 x 192
• Pixel size: 12 µm
• Temperature range: -20 C to 550 C/-4 F to 1022 F
• Frame rate: 25 Hz
• Fixed focal length: 3.2 mm
• Thermal sensitivity (NETD): 50 mK
• Field of view (H x V): 56 x 42
• Spatial resolution: 3.81 mrad
• USB interface: Type-C
• Compatible system: iOS (supports iOS 11.0 or later)
• Power consumption: 200 mW (Typical)
• Ingress protection: IEC 60529: IP56, Up to 1-meter drop test
• EMC Environment: 47 CFR 15 Subpart B. Exempt per clause 15.103
• Made of high quality specially treated aluminum material

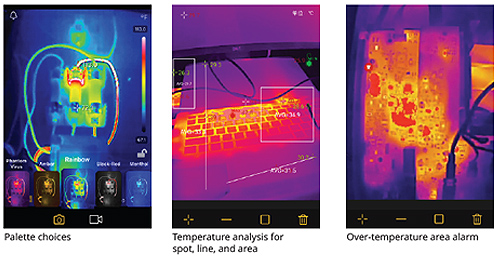

Image Quality Comparable to Professional Thermal Cameras

• Customize image view with more than 10 standard or custom

  color palettes.

• Never miss any detail with real-time high and low temperature capture.
• Real-time temperature alarm for timely response of abnormal condition.
• Automatic time-lapse capture mode, for unattended operation.
• Easy image and video management through real-time communication.
• Easy to add image annotation for smooth communication.
• Integrated key functions of a professional thermal camera: shooting, measurement, analysis and sharing.
• Optimized Fluke iSee application interfaces and menus, to enhance

  user experience with easy to access functions.

• Visit the Apple APP Store to download the Fluke iSee thermal camera app

What's in the Box

• TC01C Thermal Camera
• User manual
