GW Instek DAQ-9600G Data Acquisition System Mainframe, GPIB, USB, LAN, DAQ-9600 Series
Our Part #20002563
Condition:New
Mfr Part #DAQ-9600G
- Description
- Specifications
- Documents
Instek DAQ-9600 Data Acquisition System Mainframe w/ GPIB Option
Mainframe Features and Specifications
Large 4.3-inch LCD TFT color display
3-slot mainframe with built-in 6.5 digit DMM
Basic 0.0035% DCV accuracy
5 selectable switch modules
Up to 450 channels/s scan rate
Up to 100 kilo points internal memory
Measures and converts 14 different input signals:
Temperature with thermocouple, RTDs and thermistor; dc/ac volts; 2-and 4-wire resistance; frequency and period; dc/ac current and capacitance; direct strain and bridge strain
Commands compatible with the DAQ970A
USB storage supports copy/log data in standalone operation
Interfaces: Digit I/O, LAN, USB host/device and mini GPIB (optional)
Free PC software DAQ-Data logger, allows easy configuration and control of tests
Modules Features and Specifications (sold separately)
DAQ-900: 20-Channel Universal Multiplexer (Solid State Relay)
DAQ-901: 20+2 Channels Universal Multiplexer (Armature Relay)
DAQ-903: 40-Channel Single-Ended Multiplexer
DAQ-904: 4 x 8 2-Wire Matrix
DAQ-907: Multifunction Module
DAQ-908: 20-Channel Actuator/General-Purpose Switch
DAQ-909: 8+2 Channels High Voltage High Current Multiplexer
Customized Configuration For Changing Needs

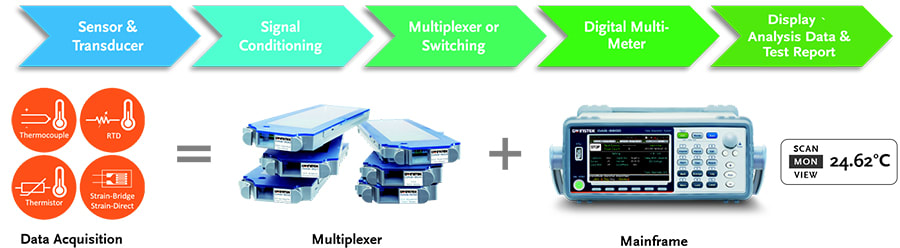

The DAQ-9600G is a modularized data acquisition system with high flexibility and higher performance effectively fulfilling different measurement requirements by expansion and change making the overall test simpler, faster and more reliable. The mainframe provides 3 module slots, and all of which can be used to install and control selected modules. At the core of its test and measurement is its precise built-in 6 1/2 digital DMM which provides basic accuracy of 0.0035% DC voltage, 0.05% AC voltage, and 0.01% resistance within a one-year calibration cycle.
The modular structure of the DAQ-9600G and its 3 module slots and 5 optional modules, consist of general-purpose modules (DAQ-900/ DAQ-901), multi-function module (DAQ-903), matrix module (DAQ-904) and high-voltage and high-current module (DAQ-909). Users can combine and match arbitrarily according to the measurement needs. Since the DMM is built-in, it will not take up the slot space for maximum flexibility to expand channels to 60 two-wire channels or 120 single-ended channels or 96 matrix crosspoints. In addition, its concise function key design, allowing users to quickly and easily arrange module channels in an intuitive way. The measurement channels of each module can be configured independently, including measurement function, range, speed and the advanced measurement functions such as offset compensation. Data is then presented in different formats, such as numerical values, bar graphs, trend graph and histogram to quickly check the measurement results. At the same time, the DAQ-9600 can convert 14 input signals, including temperature (RTD/thermocouple/thermistor), voltage (AC/DC), current (AC/DC), resistance (two-wire/four-wire), Strain (direct/bridge), frequency/period, and capacitance.
The results acquired by the DAQ-9600G can be stored without connecting to a PC with the non-volatile memory capacity of 100k readings or if preferred, directly record to a USB flash drive. For remote setting and control of data logging applications, the DAQ-9600 is equipped with LAN, USB and GPIB (optional), and provides free DAQ-Data Logger software to simplify data collection and analysis, allowing users to easily collect data. Users can monitor the measurement results no matter where they are as long as they are connected to the Internet.

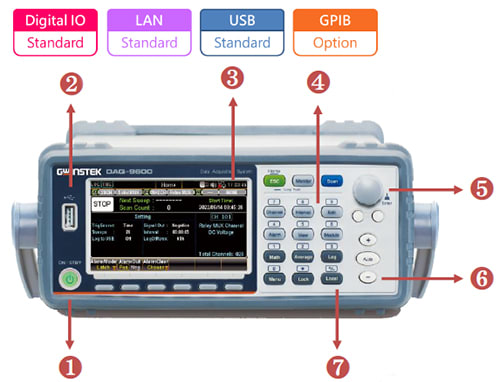

Front Panel Features
Power Switch
USB Host
LCD Display
Setup
Knob
Increase/Decrease
Function Operation

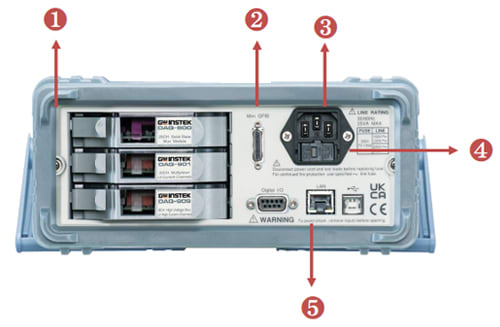

Rear Panel Features
Modules
Interface (Option mini GPIB)
Power Socket
Fuse
Standard Interface (Digital IO/LAN/USB)
What's in the Box
DAQ-9600G Mainframe w/ GPIB Option
Safety Instruction Sheet x 1
Power Cord x 1
Screw Driver x 1
