Hioki IM3523A LCR Meter, 40Hz to 200KHz, 100 Micro Ohms to 100 Mega Ohms, 10 Ranges, IM3500 Series
Our Part #20018934
Mfr Part #IM3523A
Hioki IM3523A LCR Meter, 40Hz to 200KHz, 100 Micro Ohms to 100 Mega Ohms, 10 Ranges, IM3500 Series
Our Part #20018934
Condition:New
Mfr Part #IM3523A
Condition:New
- Description
- Specifications
- Documents

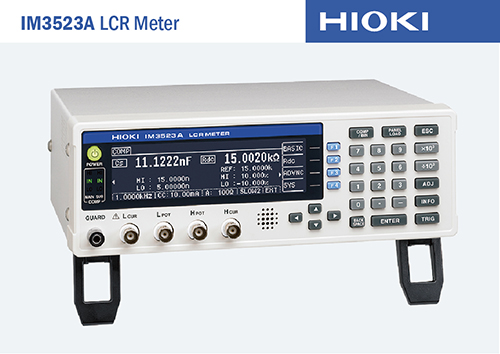

Hioki IM3500 Series - IM3523A LCR Meter
The HIOKI IM3523A LCR Meter is an impedance measuring instrument that features high-speed, highprecision operation. With measurement frequencies of 40 Hz to 200 kHz and measurement signal levels of 5 mV to 5 V, the instrument allows you to configure a broad range of measurement conditions. Additionally, the ability to perform tests using different measurement conditions with a single instrument while changing setup profiles easily makes the IM3523A well suited for use on production lines.
Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM3523A is designed for basic measurement on production lines so that it can be offered at a low price point, and delivers improved measurement reliability thanks to its contact check function.
Key Facts:
±0.05% accuracy with wide measurement range (DC, 40Hz to 200kHz, 5mV to 5V, 10uA to 50mA)
Rapid 2 msec test time
Built-in comparator and BIN functions
Non-stop testing over mixed measurement conditions such as C-D(120 Hz) and ESR(100 kHz)
LAN interface only; options for RS-232C or GP-IB are not available - see IM3523 for those options.
Model | IM3523 | IM3523A | IM3533 | IM3533-01 |
|---|---|---|---|---|
Recommended Application | LCR Electronic Components | Transformer and Coil Production | Research and Development | |
Measurement frequency | 40Hz to 200kHz | 1mHz to 200kHz | ||
Measurement signal level (V/CV) | 5mV to 5V | 5mV to 5V, 5mV to 2.5V | ||
Measurement time | 2ms | |||
Cable length | 0m/1m | 0m/1m/2m/4m | ||
Display | Monochrome LCD | Color TFT 5.7-inch LCD, touch panel | ||
Interface | EXT I/O, USB | |||
- | USB flash drive | |||
Option (select one) RS-232C, GP-IB, LAN | LAN Only | Option (select one) RS-232C, GP-IB, LAN | ||

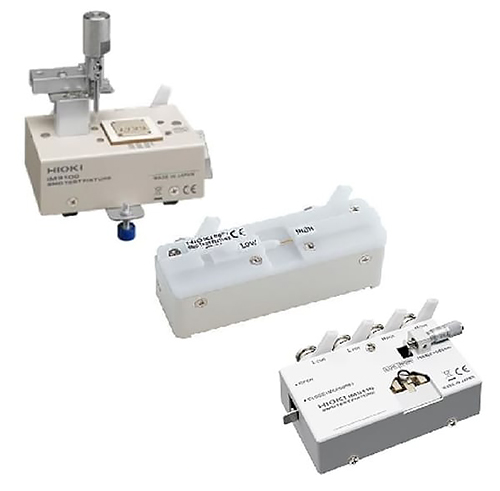

Use with Multiple Test Fixtures
The IM3523A can be used with multiple test fixtures. (sold separately).
IM9100 - Measurable range: DC to 8 MHz, For SMD with electrodes on bottom, Measurable sample sizes: 01005 to 0402 (EIA) 0402 to 1005 (JIS) , Direct connection type
IM9110 - Measurable range: DC to 1 MHz, For SMD with electrodes on side, Measurable sample sizes: 008004 (EIA), 0201 (JIS), Please contact Hioki for information about other sizes, Direct connection type
9677 - Direct connection type, Electrodes on side for SMD, DC to 120 MHz, Test sample dimensions: 3.5 mm ±0.5 mm (0.14 in ±0.02 in)

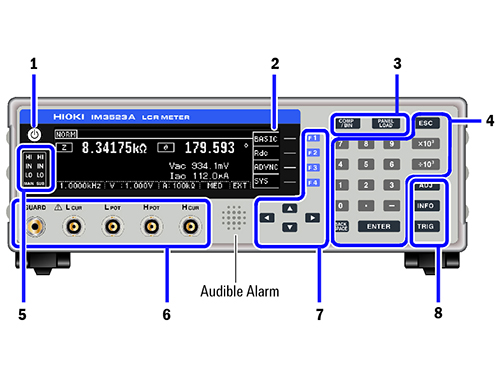

Front Panel
Power Switch: Switch with light indicators for machine state (on/off with power/no power)
Display Screen: Monochrome LCD display with measurement information and settings
Function Keys: Comparator/BIN settings and loads measurement conditions
Numerical Keypad: For entering numerical values
COMP Indicator LEDs: Displays the measurement value judgment results
Measurement Terminals: Connect cables and fixtures
Function Keys: Select corresponding item on right side of display
Function Keys: Compensation, scaling, previously configured conditions, and trigger measurements
In The Box:
IM3523A LCR Meter
Power Cord
CD-R with manual and software
Probes and fixture are sold separately
