Keysight E36234A DC Power Supply, Dual Channel, 2x 60V/10A, 400W, E36200 Series

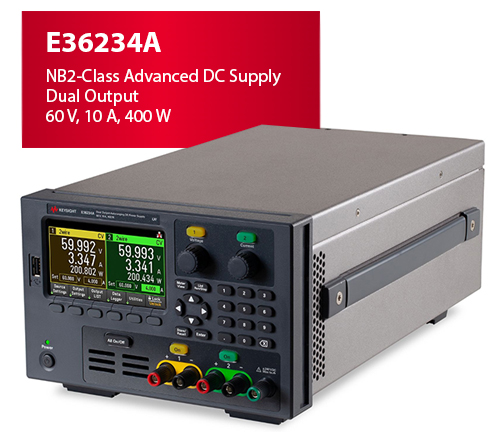

Keysight E36234A Autoranging DC Bench Power Supply

The Keysight E36234A is a 400 W autoranging DC bench power supply designed for engineers who need clean, reliable power for demanding benchtop test applications. As part of the Keysight E36200 Series, the E36234A delivers a 0 to 60 V, 0 to 10 A single-output range or up to 120 V in dual-output mode. The outputs can be combined in parallel or series mode, allowing higher current availability across a range of output voltages for flexible device testing. Low output ripple and noise, precise programming and readback accuracy, 2-wire or 4-wire remote sensing, and layered protection features help users power devices under test with confidence while improving measurement accuracy and protecting valuable prototypes.

E36234A Specifications and Key Benefits

• Power output: 400 W autoranging DC power supply for benchtop applications that require up to 400 W of clean, controlled power (V x A cannot exceed 200W for each output or 400W for both outputs).

• Output rating: 0 to 60 V and 0 to 10 A, giving engineers flexible voltage and current coverage from a single-output supply.

• Clean output power: Less than 350 µVrms ripple and noise helps support accurate testing and stable device characterization.

• Programming accuracy: Voltage accuracy of 0.03% + 8 mV and current accuracy of 0.1% + 3 mA support precise output control.

• Readback accuracy: Voltage readback accuracy of 0.03% + 8 mV and current readback accuracy of 0.1% + 3 mA allow front-panel measurements without relying on an external multimeter for many bench tasks.

• Low-range current measurement: Low-range current accuracy of 0.25% + 80 µA and 10 µA remote readback resolution help characterize low-current behavior.

• Load and line regulation: Better than 0.01% + 2 mV voltage regulation and better than 0.01% + 250 µA current regulation help maintain steady output as load or power-line conditions change.

• Remote sensing: 2-wire local sensing and 4-wire remote sensing compensate for voltage drops in test leads, improving voltage accuracy at the device under test.

• Protection features: Over-voltage protection, over-current protection, delayed over-current protection, constant-current limiting, and over-temperature protection help safeguard connected devices.

• Connectivity and automation: Standard USB and LAN, optional GPIB (order E363GPBU), SCPI programmability, IVI driver support, web browser control, and BenchVue compatibility (basic app free) simplify automated test setup.

• Productivity tools: Data logging (up to 21,845 hours and up to 5MB of data), output sequencing, LIST mode, adjustable voltage slew rate, and internal memory help engineers capture test results and simulate power conditions.

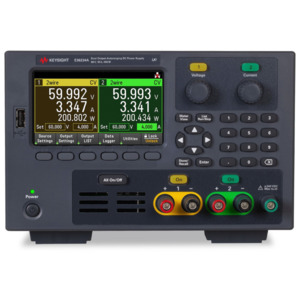

• Bench-friendly design: 4.3-inch color LCD, individual voltage and current knobs, front and rear output terminals, thermal-control fan speed, and compact 5.8 kg form factor support everyday lab use.

E36200 Series DC Power Supplies

The E36200 Series includes both single-output and dual-output power supplies designed for bench applications requiring up to 400 W of power. Its autoranging capability provides maximum available current across the entire output voltage range. For applications that require up to 40 A (E36233A) or up to 120 V (E36234A), the dual outputs can be automatically combined in parallel or series mode to create a single output with twice the available power. A single-output model is suitable for devices with power requirements below 200 W, while a dual-output model can power two devices simultaneously.

What's in the Box

• E36234A DC Power Supply

• KeysightCare Technical Support - 3 years

• Return to Keysight Warranty - 3 years
