Megger Easyloc RX Standard Easyloc Rx Standard, EN: Receiver Set, 50 Hz/R/33 kHz With Depth Measurement (No Bag)

Megger Easyloc RX Standard Receiver

The Easyloc is designed for quick, straightforward operation, incorporating features that help users efficiently locate and avoid potentially hazardous power cables and other underground utilities. The receiver displays the strength of the detected signal and highlights the peak signal level with a visual marker, providing continuous audio and visual feedback for greater confidence during operation. With the Easyloc Standard model, depth measurements can be obtained at the touch of a button, including when operating in Power mode.

Easyloc is ideal for a wide range of utility and construction applications, including water, gas, power, rail, highway, and telecommunications networks. It is also well suited for contractors, groundworks and construction professionals, local authorities, civil engineering firms, street lighting installers, fencing contractors, and landscaping businesses.

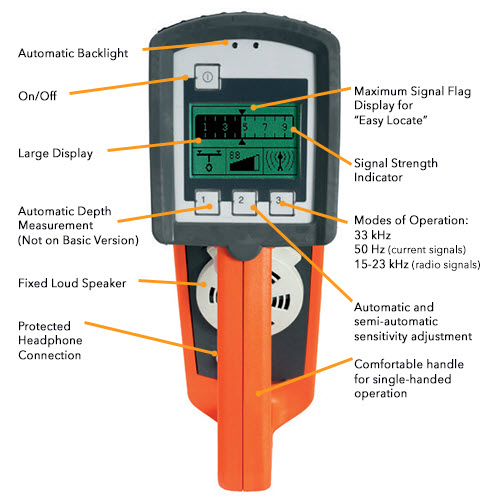

Receiver Features

• Passive signal modes for locating lines without the Easyloc Tx transmitter

• Active signal modes for locating lines / probes when used together with a transmitter

• Automatic depth determination when used together with a transmitter
  (not available for Easyloc Basic)

• Semi-automatic depth estimation in passive signal modes
  (not available for Easyloc Basic)

• Sensitivity level can be adjusted automatically or manually

• Lighted display for use in dim environments

• Speaker with volume control

• Greater than 40 hours of operating time


Receiver Specifications (Standard Version)

• Radio signal frequency range: 15 kHz to 23 kHz

• Power signal frequency range: 50 / 60 Hz

• Rated: IP57 / IP67 (up to the bottom of the batter case)

• Power Supply: AA batteries

What's in the Box

• EasyLoc Receiver (890003780)

• User manual (English)

Megger Easyloc RX Standard Receiver FAQ

1. Can the Easyloc Rx receiver locate buried utilities without a transmitter?
   The Easyloc offers both passive modes (RADIO and POWER GRID) for locating energized or signal-carrying lines without a transmitter, as well as active TRANSMITTER and PROBE modes when used with a compatible transmitter or sonde.

2. How does the receiver indicate the strongest signal location?
   The receiver provides both audible signal feedback and a visual signal-strength bar graph with a peak-hold marker that remains visible for several seconds, helping users locate the point of maximum signal strength.

3. Can the Easyloc Rx receiver measure the depth of buried cables and pipes?
   Yes. The standard Easyloc can perform automatic depth measurements when operating in TRANSMITTER or PROBE mode with a clear continuous transmitter signal. It can also provide a rough depth estimate in RADIO and POWER GRID modes.
