Megger Easyloc-S-EN-VS Utility Location System, Receiver, Transmitter, Ground Set/Stake, EasyLoc Series
Our Part #20022363
Condition:New
Mfr Part #Easyloc-S-EN-VS
- Description
- Specifications
- Documents
Megger Easyloc-S-EN-VS Standard Complete Utility Location System

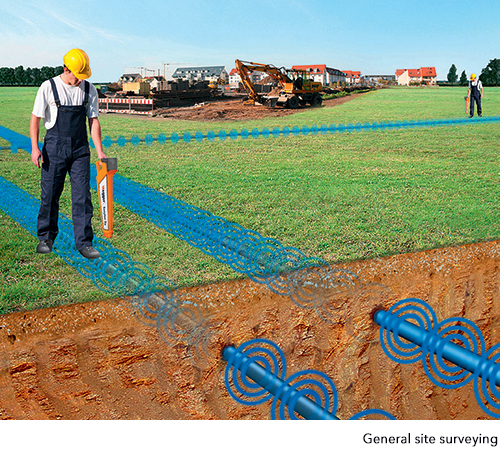

The Easyloc is fast and simple to operate, with features designed to avoid potentially dangerous power cables and other services as efficiently as possible. The Easyloc receiver shows the signal level received and marks the maximum with a marker, providing both audible guidance and continuous visual confirmation. With the Easyloc Standard, depth measurements can be taken at the touch of a button, including when operating in power mode. Ideal for locating underground infrastructure, Easyloc is widely used across water, gas, power, rail, telecommunications, and highway networks, as well as by contractors, construction crews, civil engineering firms, municipalities, street lighting installers, fencing professionals, and landscaping companies.
Features
Make optimum preparations for your building work, quickly and reliably
Semi-automatic sensitivity control
Depth measurement, even without transmitter
Compatible with other location systems
High-performance transmitter
Big display with easy menu structure and automatic backlight
Specifications
Passive Frequencies:
Radio: 15 kHz - 23 kHz
Power: 50 Hz - 250 Hz
Easyloc Tx / Sonde: 33 kHz
Active Frequencies: 33 kHz
Depth Measurement:
Cables: 0.3 m - 5 m
Sondes: 0.3 m - 7 m
Output Power: 0.1 W - 0.5 W, Continuous and pulsed, signal (switchable)
Rated: Receiver: Receiver: IP 56, IP 67 (below the battery case)
Transmitter: IP54Operating Time: > 40 hrs
Detecting and Tracing
The Easyloc Tx transmitter is distinguished by the following features:

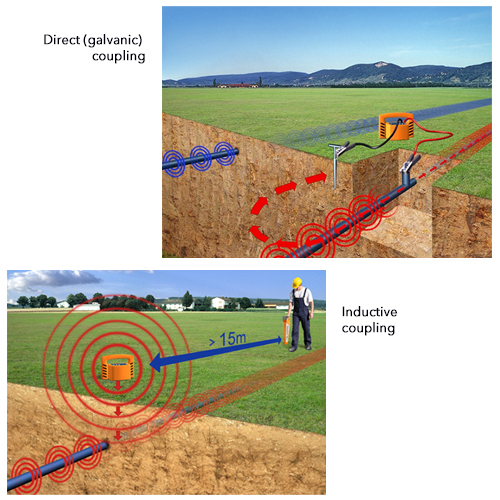

Inductive coupling of the signal using the integrated antenna or transmitter clamp
Direct (galvanic) coupling of the signal using connected equipment (such as the measurement cable and power socket adapter)
Two-step adjustable transmission power
Selectable signal output – continuous or pulsed
The Easyloc Tx receiver is distinguished by the following features:
Passive signal modes for locating lines without the Easyloc Tx transmitter
Active signal modes for locating lines / probes when used together with a transmitter
Automatic depth determination when used together with a transmitter (not available for Easyloc Basic)
Semi-automatic depth estimation in passive signal modes (not available for Easyloc Basic)
Sensitivity level can be adjusted automatically or manually
Lighted display for use in dim environments
EasyLoc Series
Easyloc Basic | Easyloc Standard | Easyloc Plus | Easyloc Cam | |
|---|---|---|---|---|
Passive Frequencies | Radio: 15 kHz - 23 kHz, Power: 50 Hz - 250 Hz, Easyloc Tx / Sonde: 33 kHz | Power: 50 Hz / 60 Hz | ||
Active Frequencies | 33 kHz | 33 kHz | 100 Hz /120 Hz 8.44 kHz , 33 kHz | 512 Hz , 640 Hz 33 kHz, (only sondes) |
Depth measurement | N/A | Cables: 0.3 m - 5 m Sondes: 0.3 m - 7 m | Cables: 0.3 m - 5 m Sondes: 0.3 m - 7 m | Sondes: 0.3 m - 7 m |
Output power | 0.1 W , 0.5 W Continuous and pulsed signal (switchable) | 0.1 W , 0.5 W Continuous and pulsed signal (switchable) | 0.1 W , 0.5 W, 2 W Continuous and pulsed signal (switchable) | N/A |
Application | Cable location | Cable location | Cable and pipe location | Sonde and camerahead location |
What's in the Box
Receiver Easyloc RX Standard
Transmitter Easyloc TX
Grounding set
Ground stake
Carry bag
User manual
Megger Easyloc-S-EN-VS FAQ
What are the advantages of the EasyLoc?
The EasyLoc helps to avoid cable damage and minimize costly accidents and inconvenient delays. It's quick and simple to operate, the transmitter with mains voltage-proof output doesn't require a separating filter, and it provides depth measurement.Can you measure depth without using a transmitter?
Yes, depth measurement is possible at the push of a button even without a transmitter (such as when operating in passive power mode), but this feature is restricted to the EAsyLoc standard version.
