Megger EVT100X Electric Vehicle Tester, 3/4 Wire, DLRO, Continuity, Bluetooth, EVT100 Series

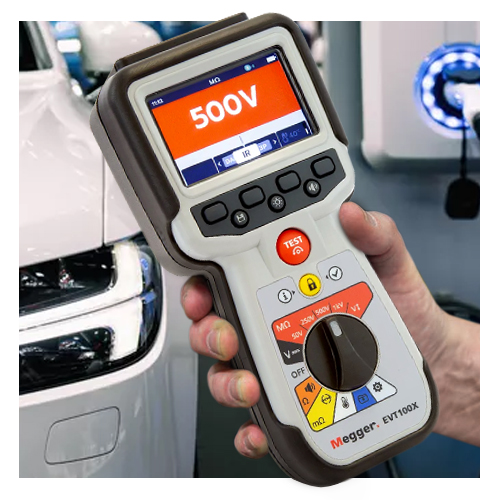

Megger EVT100X Electric Vehicle Tester Overview

The Megger EVT100X electric vehicle tester is a portable, comprehensive electrical testing device designed for EV diagnostics, maintenance, and safety testing. It combines insulation resistance (IR) testing, low resistance bonding, DC voltage measurement, and continuity testing in a rugged, IP54-rated handheld instrument. Built for use in electric vehicle manufacturing, repair, and inspection environments, the EVT100X supports critical EV testing requirements while enabling efficient workflows with Bluetooth-enabled data streaming, onboard storage, and real-time reporting.

Specifications

• Insulation resistance testing up to 200 GΩ

• Adjustable test voltage from 10 V to 999 V

• DC voltage measurement: 0 to 1000 V

• Continuity measurement range: 0.01 Ω to 1 MΩ

• Four-wire low resistance (DLRO): 1 mΩ to 10 Ω (200 mA test current)

• Temperature measurement range: -20 °C to 1000 °C (instrument range)

• Thermocouple: Type T (type K and Type J)

• Data storage: 256 time- and date-stamped test results

• Safety rating: CAT III 600 V

• Environmental protection: IP54 rated housing

Key Benefits

• All-in-one EV testing solution
  Combines insulation, continuity, bonding, and voltage testing in a single device

• Accurate insulation and resistance measurements
  Stabilized test voltage and guard terminal improve measurement precision

• Bluetooth data streaming (EVT100X)
  Enables real-time test monitoring, wireless data transfer, and reporting

• Improved testing efficiency
  Performs multiple EV diagnostic tests without switching instruments

• Rugged industrial design
  IP54-rated enclosure protects against dust, moisture, and tough environments

• Built-in data storage and USB export
  Stores up to 256 results for easy documentation and compliance reporting

• Guided testing setup
  Integrated diagrams and versatile accessories simplify setup across multiple applications

Applications

• Electric vehicle (EV) diagnostics and maintenance testing

• Fault finding in EV systems, high-voltage connectors, and cables

• Insulation resistance and bonding verification in EV systems

• Testing hybrid and electric vehicles (HEV, PHEV, BEV, FCEV)

• Automotive workshops, garages, and repair centers

• Crash investigation and insurance inspection testing

Who This Product Is For

• EV technicians and service engineers

• Automotive workshops and repair centers

• Electric vehicle manufacturers (OEMs)

• Inspection and compliance professionals

• Insurance and crash investigation teams

• Field service technicians and contractors

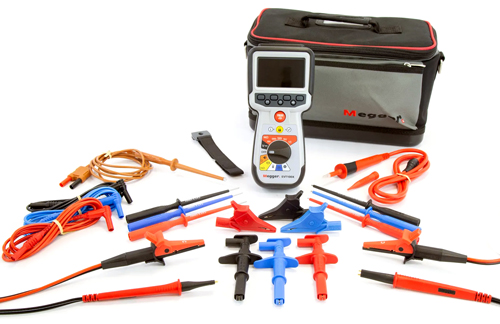

What's Included

• EVT100X with Bluetooth

• Hook strap

• Multipurpose industrial carry case

• SP5 remote probe

• Temperature probe (Type T, CAT III 600 V)

• Crocodile clips (red, black, blue) CAT IV 600 V

• IR lead set (grabber clips, test leads, long-reach probes)

• Kelvin clip lead set (CAT III 600 V)

• Kelvin probe lead set (CAT III 600 V)

• Replaceable Kelvin probe pins (pack of 4)

• Certificate of test and calibration

• 6 × AA rechargeable NiMH batteries (installed)

• Battery charger

• Quick start guide

FAQ Questions and Answers

1. What tests can the Megger EVT100X perform on EVs?
   The Megger EVT100X performs essential EV testing including insulation resistance, low resistance bonding (DLRO), continuity, DC voltage measurement, diode testing, and temperature measurement with compensation. It also supports advanced insulation diagnostics such as PI and DAR, making it suitable for high‑voltage EV system testing and maintenance.

2. Does the EVT100X support automatic temperature compensation for insulation tests?
   Yes. The EVT100X supports temperature measurement and compensation, allowing insulation resistance results to be adjusted for more accurate and consistent readings under varying conditions. It also features a guard terminal to minimize the influence of surface leakage current on measurements.

3. How do I download the 256 stored results?
   Results can be exported via a USB stick inserted into the device.

4. What is the difference between the EVT100 and EVT100X?
   The EVT100X includes Bluetooth connectivity for real-time data streaming, storage, and reporting, while the EVT100 offers the same core EV testing functions without wireless communication features.
