Megger TC120 Thermal Camera, 120x90, -20 to 500C, 2.4" LCD, 60mK, TC Series

Megger TC120 Thermal Camera Product Overview

The Megger TC120 is a compact and powerful infrared (IR) thermal camera designed to deliver clear, real-time thermal imaging using advanced infrared technology. Featuring a 120 × 90 resolution infrared detector enhanced by real-time image processing, it produces sharp, low-noise images for accurate diagnostics.

With a built-in 2 MP visible light camera, video streaming and recording capabilities, and mobile app connectivity, the TC120 offers a versatile and user-friendly solution for professionals in electrical, mechanical, and building inspection applications. Its wide temperature range and robust design make it suitable for both industrial and domestic environments.

Specifications

• Infrared resolution: 120 × 90 (super resolution up to 240 × 180)

• Detector type: VOX, 7.5–14 µm

• Thermal sensitivity (NETD): 60 mK

• Temperature range: -20°C to 550°C (auto-switching ranges)

• Measurement accuracy: ±2°C or ±2%

• Display: 2.4" LCD color screen

• Frame rate: 25 Hz / 9 Hz

• Field of view: 50° × 38°

• IFOV: 7.46 mrad

• Minimum focus distance: 0.1 m

• Image modes: Infrared, visible light, fusion, picture-in-picture

• Built-in digital camera: 2 MP

• Storage: 16 GB internal memory

• Battery: Rechargeable lithium-ion, up to 8 hours runtime

• Charging: USB-C, ~2.5 hours to 90% charge

• Protection rating: IP54, 2 m drop tested

Key Benefits

• High-sensitivity infrared detector ensures accurate fault detection

• Enhanced imaging with IR-Perfclear technology delivers up to 4× better image quality

• Wide temperature range supports diverse applications

• Easy-to-use interface with multiple viewing modes and automatic settings

• Supports photo, video recording, and real-time streaming for documentation

• Mobile app connectivity allows quick sharing and analysis

• Durable design with IP54 rating and drop resistance for field use

• Long battery life supports extended inspection sessions

Applications

• Domestic electrical circuit inspection

• Electrical distribution boards and cabling analysis

• Industrial and commercial electrical maintenance

• Motor, generator, and rotating equipment diagnostics

• HVAC and air conditioning maintenance

• Heating system evaluation (central heating, underfloor, heat pumps)

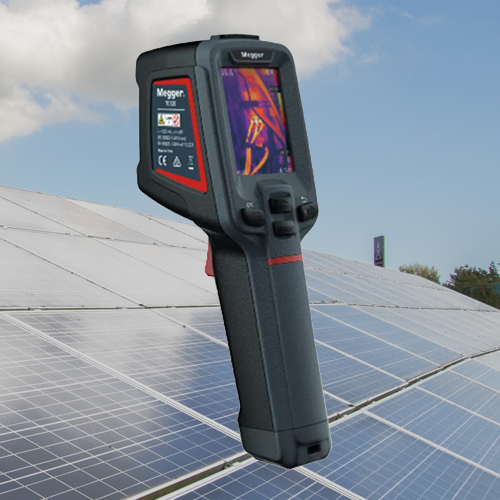

• Solar photovoltaic (PV) system inspection

• Building insulation and heat loss surveys

• Detection of air leaks and moisture issues

• IT system monitoring

What's Included

• TC120 Thermal Camera

• Rigid protective case

• Wrist strap

• Battery charger/adapter

• Adapter plug set

• USB-C charging/data cable

• Quick Start Guide

• Calibration certificate

FAQ Questions and Answers

1. What temperature range can the TC120 measure?
   The TC120 measures temperatures from -20°C to 550°C, with automatic range switching to optimize accuracy across different conditions.

2. Can images and videos be shared easily?
   Yes, the TC120 allows photo and video recording and supports sharing via a mobile app, as well as PC analysis through ThermoLink software.

3. How rugged is the TC120 for field use?
   The device is designed for durability with an IP54 rating and has passed a 2-meter drop test, making it suitable for demanding environments.
