Megger TC256 Thermal Camera, 2.4" LCD, 256x192, -20 to 500C, 45mK, 8x Zoom, TC Series

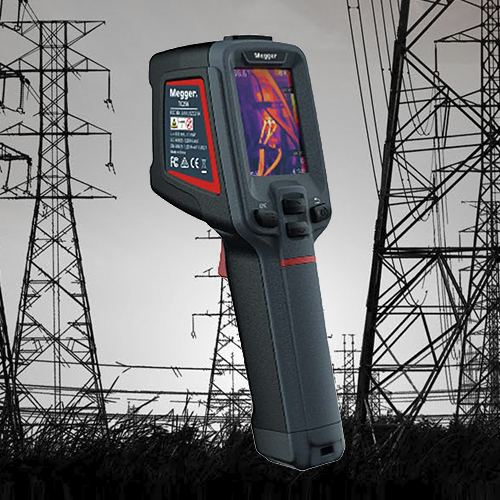

Megger TC256 Thermal Camera Product Overview

The Megger TC256 is a high-performance thermal camera engineered to deliver detailed and precise thermal imaging with a 256 × 192 infrared resolution. Using advanced image enhancement technology, it reduces noise and improves clarity to provide sharp, real-time thermal images for accurate diagnostics.

Designed for professional use, the TC256 integrates a 2 MP visible light camera, video streaming, recording capabilities, Wi-Fi connectivity, and over-the-air (OTA) updates. These features make it a powerful, easy-to-use solution for a wide range of industrial, commercial, and building inspection applications.

Specifications

• Infrared resolution: 256 × 192 (super resolution up to 512 × 384)

• Detector type: VOX, 7.5–14 µm

• Thermal sensitivity (NETD): 45 mK

• Temperature range: -20°C to 550°C (auto-switching)

• Measurement accuracy: ±2°C or ±2%

• Frame rate: 25 Hz / 9 Hz

• Field of view: 25° × 19°

• Minimum focus distance: 0.1 m

• Focusing mode: Automatic

• Display: 2.4" LCD color screen

• Image modes: Infrared, visible light, fusion, picture-in-picture

• Digital camera: 2 MP

• Storage: 16 GB internal memory

• Connectivity: Wi-Fi and USB-C

• Battery life: Up to 11 hours

• Charging time: 90% in approximately 2.5 hours

• Protection rating: IP54, 2 m drop tested

Key Benefits

• Higher resolution sensor enables more detailed thermal analysis

• IR-Perfclear technology enhances image quality up to 4×

• Wide temperature range supports diverse inspection needs

• Wi-Fi connectivity enables real-time data transfer and mobile integration

• Automatic focusing simplifies operation and improves efficiency

• Long battery life (up to 11 hours) for extended field use

• Supports real-time video streaming and recording for reporting and analysis

• Rugged, field-ready design with drop resistance and IP54 protection

Applications

• Domestic electrical circuit inspection

• Electrical distribution boards and cable diagnostics

• Commercial and industrial electrical maintenance

• Motor, generator, and rotating equipment monitoring

• HVAC and air conditioning maintenance

• Heating system evaluation (e.g., underfloor heating, heat pumps)

• Solar PV system inspection

• Building insulation and heat loss surveys

• IT system thermal monitoring

• Detection of air leaks and moisture issues

What's Included

• TC356 Thermal Camera

• Rigid protective case

• Wrist strap

• Battery charger/adapter

• Adapter plug set

• USB-C charging/data cable

• Quick Start Guide

• Calibration certificate

FAQ Questions and Answers

1. What makes the TC256 different from lower-resolution thermal cameras?
   The TC256 offers a higher infrared resolution of 256 × 192 with super-resolution up to 512 × 384, delivering more detailed and accurate thermal images for diagnostics.

2. Does the TC256 support wireless connectivity?
   Yes, the TC256 includes Wi-Fi connectivity, allowing real-time image and video transmission to mobile devices and integration with analysis applications.

3. How long can the TC256 operate on a single charge?
   The thermal camera provides up to 11 hours of operating time and can be charged via USB-C, with about 90% charge achieved in approximately 2.5 hours.
