Megger TC256P Pocket Thermal Camera, 3.5" LCD, 256x192, -20 to 500C, 45mK, TC Series

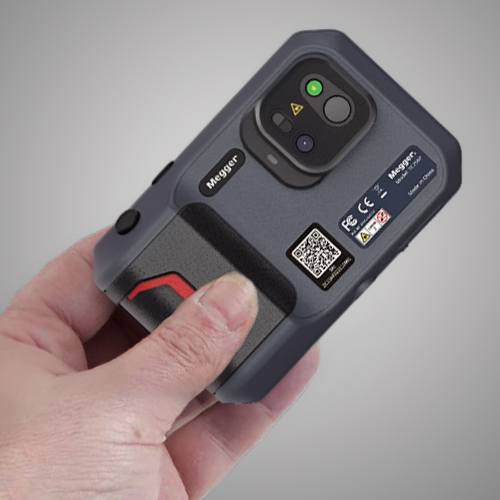

Megger TC256P Pocket-Sized Thermal Camera Product Overview

The Megger TC256P is a compact, pocket-sized thermal camera designed for non-contact inspection and fault diagnosis in electrical, mechanical, and HVAC systems. Featuring a 256 × 192 infrared detector, it delivers detailed thermal imaging to help identify hidden issues quickly and accurately.

Equipped with a 5 MP visible light camera, a 3.5-inch touchscreen display, and built-in Wi-Fi, the TC256P enables easy operation and fast sharing of results. Advanced imaging modes and intelligent tools such as laser ranging and area calculation make it a versatile solution for professional inspection tasks.

Specifications

• Infrared resolution: 256 × 192

• Detector type: VOX, 7.5–14 µm

• Thermal sensitivity (NETD): 45 mK

• Temperature range: -20°C to 550°C (auto-switching)

• Measurement accuracy: ±2°C or ±2%

• Frame rate: 25 Hz / 9 Hz

• Field of view: 56° × 48°

• Minimum object distance: 0.3 m

• Focusing mode: Focus-free

• Digital zoom: 1.1× to 8×

• Display: 3.5" LCD color touchscreen

• Image modes: IR, visible, fusion, picture-in-picture

• Digital camera: 5 MP

• Storage: 16 GB internal memory

• Connectivity: Wi-Fi and USB-C

• Battery: Rechargeable lithium-ion, ~4 hours runtime

• Charging time: ~2.5 hours to 90%

• Protection rating: IP54, 1 m drop tested

Key Benefits

• Compact pocket-sized design for portability and convenience

• High-resolution infrared imaging for clear and accurate diagnostics

• Large touchscreen display improves usability and navigation

• Multiple image modes provide enhanced temperature visualization

• Built-in Wi-Fi enables quick sharing and real-time data transfer

• Laser ranging and area calculation tools improve measurement precision

• Integrated 5 MP camera supports detailed documentation

• Durable design with IP54 rating suitable for field use

Applications

• Domestic electrical circuit inspection

• Electrical distribution boards and cabling diagnostics

• Commercial and industrial electrical maintenance

• Motor, generator, and rotating equipment monitoring

• HVAC and air conditioning servicing

• Heating system inspection (central heating, heat pumps, underfloor systems)

• Solar PV system analysis

• Building insulation and heat loss surveys

• IT system monitoring

• Detection of air leaks and moisture issues

What's Included

• TC356P Thermal Camera

• Rigid protective case

• Wrist strap

• Battery charger/adapter

• Adapter plug set

• USB-A to USB-C cable

• Quick Start Guide

• Calibration certificate

FAQ Questions and Answers

1. What type of display does the TC256P have?
   The TC256P features a 3.5-inch LCD color touchscreen, allowing intuitive navigation and easy viewing of thermal and visual images.

2. Does the TC256P support advanced measurement tools?
   Yes, it includes laser ranging and intelligent area calculation tools for measuring and analyzing objects more precisely.

3. How long does the battery last during operation?
   The device provides approximately 4 hours of operating time on a single charge and supports USB-C charging, including use while charging.
