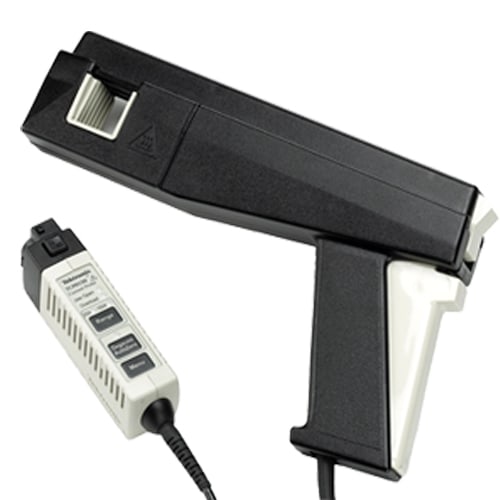

Tektronix TCP0150 AC/DC Current Probe, 5mA to 150A, 20MHz, 600V, CAT1-2-3, 500A, 2 m, TCP Series

Tektronix TCP0150 AC/DC Current Probe, 5 mA to 150 A, 20 MHz, TCP Series

Key Specifications

• Measurement type: AC/DC current probe

• Bandwidth: DC to 20 MHz

• Current ranges: 25 A and 150 A selectable

• Minimum current sensitivity: 5 mA

• Maximum current: 150 A RMS

• Maximum peak pulse current: 500 A

• Interface: TekVPI

• Probe type: Split-core

• Maximum bare wire voltage: 600 V CAT I/II, 300 V CAT III

• Cable length: 2 m

The Tektronix TCP0150 is a higher-current TekVPI AC/DC current probe for engineers who need more current range without moving to an amplifier-based system. It delivers DC to 20 MHz bandwidth, 5 mA minimum current sensitivity, selectable 25 A and 150 A ranges, 150 A RMS, and up to 500 A peak pulse capability for high-current waveform analysis. This model is the strongest fit for power conversion, motor drives, industrial electronics, and other applications where higher current capacity matters more than the extra bandwidth offered by the lower-range models.

Best for higher current testing up to 150 A with TekVPI convenience.

Ideal Applications

• Power supplies and power inverters/converters

• Semiconductor device testing

• Industrial and consumer electronics

• Motor drives and transportation systems

In The Box

• TCP0150 AC/DC current probe

• Protective cover

• Certificate of traceable calibration

• Data standard

FAQ: Frequently Asked Questions

1) How do I know if the TCP0150 is the right TCP Series model for my application?
The TCP0150 is the best fit when you need wider dynamic range and substantially higher current capacity for power conversion, motor drives, and industrial test work without moving to the TCP404XL system.

2) What current and bandwidth performance does the TCP0150 provide?
The TCP0150 provides DC to 20 MHz bandwidth, selectable 25 A and 150 A ranges, 150 A RMS current capability, and up to 500 A peak pulse handling.

3) What does the TekVPI interface do for users?
TekVPI enables direct oscilloscope connection with automatic scaling, current readout, and access to probe controls through the scope interface.

4) Can the TCP0150 measure low current accurately?
Yes, it can measure down to 5 mA while supporting high-current applications with low noise, low drift, and typically less than 1% DC gain error.
