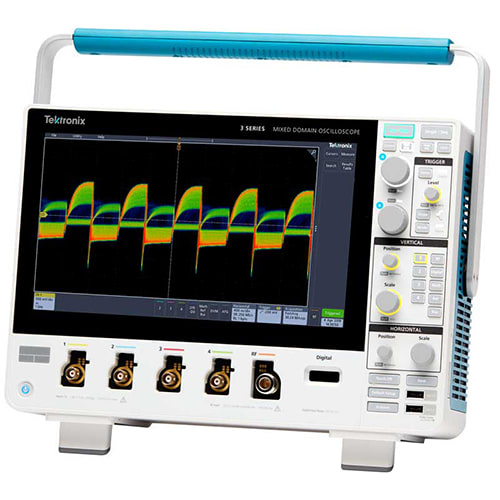

Tektronix MDO34/3-BW-200 Mixed Domain Oscilloscope, 4 CH, 200MHz, 2.5GS/s, 10Mpts, 3 Series MDO

Tektronix MDO34 3-BW-200 200 MHz, 4-Channel, 2.5 GS/s Mixed Domain Oscilloscope with 8-bit Vertical Resolution and 11.6 in. HD Touchscreen, 10 M

• Bandwidth: 200 MHz

• Channels: 4

• Sample Rate: 2.5 GS/s

• Oscilloscope + Spectrum Analyzer on the same time domain

• 1 GHz hardware-based spectrum analyzer standard, 3 GHz optional

• 10 M record length on all channels

• >280,000 wfm/s maximum waveform capture rate

• Standard passive voltage probes with 3.9 pF capacitive loading and 500 MHz analog bandwidth

• Spectrum Analyzer

  • Frequency range: 9 kHz - 1 GHz (standard) or 3 GHz (optional)

  • Ultra-wide capture bandwidth up to 3 GHz

• Arbitrary Function Generator (optional)

  • 13 predefined waveform types

3 Series MDO Mixed Domain Oscilloscope is the largest display in class, improved low-level signal measurement accuracy and industry-leading probe performance, the 3 Series MDO sets a new standard for bench oscilloscopes. Whether you’re testing your baseband design for IoT or just for simple EMI sniffing, the 3 Series has a unique true hardware spectrum analyzer built right in with superior RF test performance and guaranteed RF specifications.

Typical Applications

Embedded design and IoT
Discover and solve issues quickly by performing system level debug on mixed signal embedded systems including today's most common serial bus technologies with the 3 Series MDO and support for a broad set of common serial buses.

Power design
Make reliable and repeatable voltage, current, and power measurements using automated power quality, switching loss, harmonics, ripple, modulation, and safe operating area measurements with the widest selection of power probes in an affordable solution.

Education
Managing multiple instruments on a bench can be troublesome. The 3 Series MDO combines analog, digital, and RF measurements with a signal source in a single, small (5.9 in., 149 mm deep) instrument. The combination of a small instrument and high level of integration aids in the teaching of various electronics principles as well as in its usage for more sophisticated lab experiments. Full upgradeability enables adding functionality over time as needs change or budgets allow.

Manufacturing Test and Troubleshooting
Size and space constraints can play havoc on a manufacturing floor. The 3 Series MDO minimizes rack or bench space by integrating multiple instruments into one small package. Integration reduces cost associated with utilizing multiple different instrument types in manufacturing test or troubleshooting stations.

Service Installation and Maintenance
Having the right instruments when and where you need them is critical. The 3 Series MDO combines analog waveforms, digital logic, and spectrum analysis in a lightweight (11.7 lbs, 5.3 kg), portable package - making it the perfect choice where space is limited and flexibility is desired.

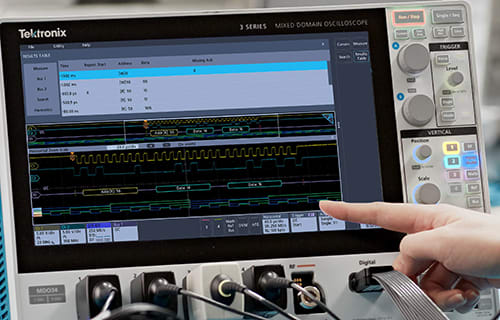

Touch interaction finally done right

Scopes have included touch screens for years, but the touch screen has been an afterthought. The 3 Series MDO 11.6" display includes a capacitive touchscreen and provides a user interface truly designed for touch.
The touch interactions that you use with phones and tablets, and expect in a touch enabled device, are supported in the 3 Series MDO.

• Drag waveforms left/right or up/down to adjust horizontal and vertical position or to pan a zoomed view

• Pinch and expand to change scale or zoom in/out in either horizontal or vertical directions

• Swipe in from the right to reveal the Results Bar or down from the top to access the menus in the upper left corner of the display

Powerful Waveform Capture and Analysis

At the core of the 3 Series MDO is a world-class oscilloscope, offering comprehensive tools that speed each stage of debug - from quickly discovering anomalies and capturing them, to searching your waveform record for events of interest and analyzing their characteristics and your device’s behavior.


Digital phosphor technology with FastAcq™ high-speed waveform capture

To debug a design problem, first you must know it exists. Every design engineer spends time looking for problems in their design, a time-consuming and frustrating task without the right debug tools.
Digital phosphor technology provides you with fast insight into the real operation of your device. Its fast waveform capture rate - greater than 280,000 wfms/s with FastAcq - gives you a high probability of quickly seeing the infrequent problems common in digital systems: runt pulses, glitches, timing issues, and more.
To further enhance the visibility of rarely occurring events, intensity grading is used to indicate how often rare transients are occurring relative to normal signal characteristics. There are four waveform palettes available in FastAcq acquisition mode.

In The Box

• TPP0250 - 200 MHz, 10x passive voltage probe. One per analog channel

• 071-3608-00 - Installation and Safety Instructions, printed manual (translated in English, Japanese, and Simplified Chinese)

• 016-2144-xx - Accessory bag

• Power cord

• OpenChoice Desktop Software available for download

• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001 quality system registration
