Teledyne LeCroy CP150B-6M Current Probe, AC/DC, 5MHz, 150 A, 500 A Peak Pulse, 6 m, CP Series

Teledyne LeCroy 150 A, 5 MHz Current Probe AC/DC, 150 Arms, 300 A Peak Pulse, 6 meter Cable

• 150 Arms Continuous Current

• 300 A Peak Current

• 5 MHz Bandwidth

• 100 mA/div Sensitivity

• 6 meter Cable

• Powered through the Teledyne LeCroy ProBus connection

• Degauss and Autozero functions can be done directly from the oscilloscope's (sold separately) user interface

Wide Range of Applications

Teledyne LeCroy current probes are available in a variety of models for a wide range of applications. Teledyne LeCroy current probes are often used in applications such as the design and test of switching power supplies, motor drives, electric vehicles, and uninterruptible power supplies.

Fully Integrated

All Teledyne LeCroy current probes are powered through the Teledyne LeCroy ProBus connection and require no additional hardware. Along with providing power, the ProBus connection allows the current probe and oscilloscope to communicate, resulting in current waveforms automatically displayed on the screen in Amps, and calculated power traces scaled correctly in Watts. This full integration also allows for Degauss and Autozero functions to be done directly from the oscilloscope’s user interface.

Compatibility

These probes are compatible with any Teledyne LeCroy oscilloscope with a ProBus interface running firmware version 9.3.x.x or greater. Not intended for measurements on circuits directly connected to the Mains supply or within Measurement Categories II, III, or IV.

Ease of Use

Teledyne LeCroy current probes do not require the breaking of a circuit or the insertion of a shunt to make accurate and reliable current measurements. Based on a combination of Hall effect and transformer technology, Teledyne LeCroy current probes are ideal for making accurate AC, DC, and impulse current measurements.

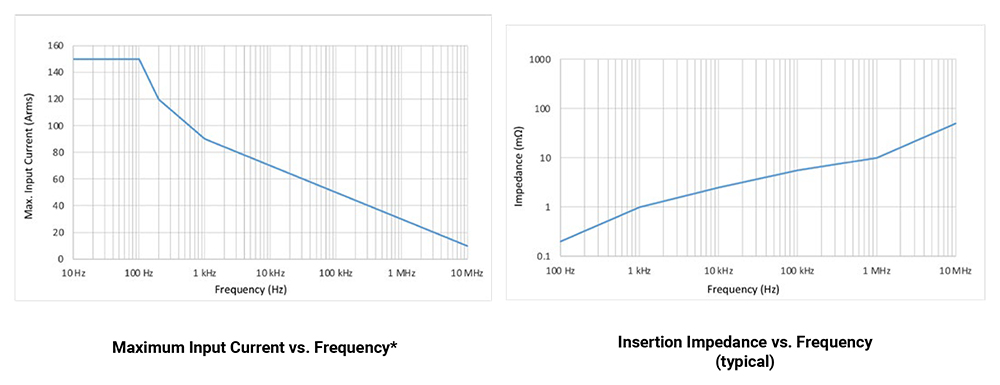

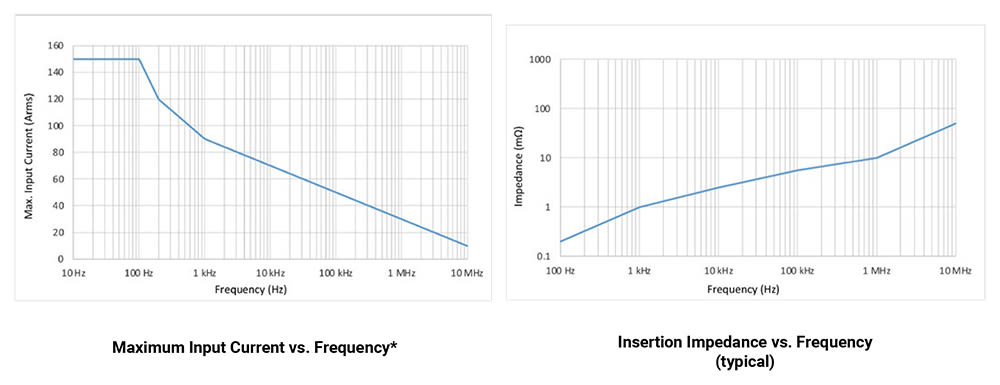

Frequency Charts

In The Box

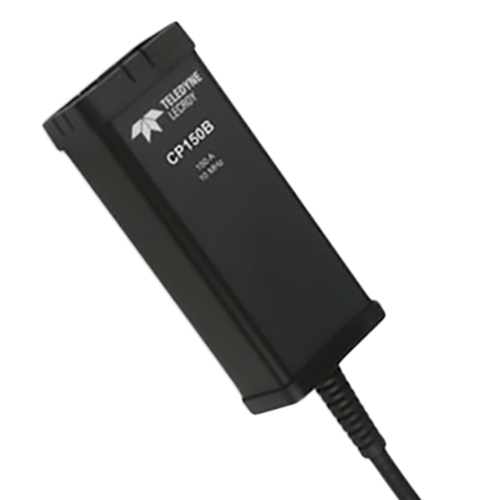

CP150B Oscilloscope Current Probe
