UNI-T MSO5034HD Mixed Signal Oscilloscope, 4Ch, 350MHz, 12-Bit, MSO5000HD Series

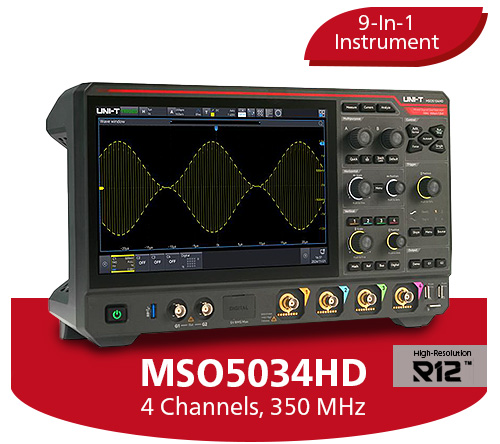

Uni-T MSO5034HD Mixed Signal Oscilloscope

The UNI-T MSO5034HD is a mixed-signal oscilloscope that combines 12-bit high-resolution vertical accuracy, a 350 MHz analog bandwidth, and real-time sampling rates of up to 5 GSa/s. Designed for both engineers and educators, it delivers advanced signal analysis through an intuitive interface.

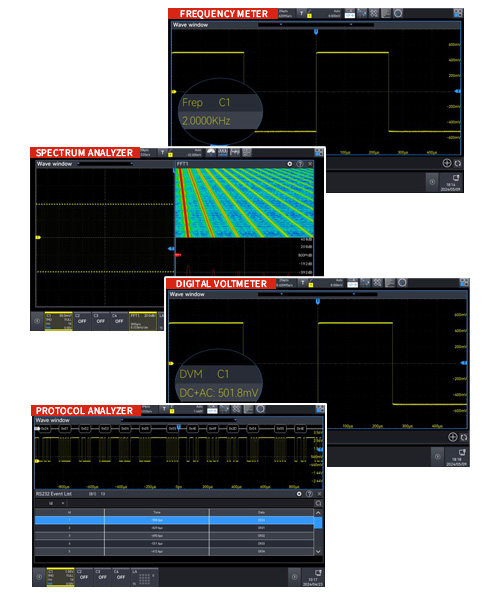

A true 9-in-1 benchtop powerhouse, the UNI-T MSO5034HD integrates multiple instruments into a single solution: Digital Oscilloscope, Logic Analyzer, Function/Arbitrary Waveform Generator, Spectrum Analyzer, Digital Voltmeter, High-Precision Frequency Counter, Protocol Analyzer, Bode Plot Analyzer, and Power Analyzer. Featuring Ultra Phosphor 3.0 technology and a bright 10.1-inch capacitive touchscreen, it achieves a waveform capture rate of up to 1,500,000 wfms/s in sequence mode. With four analog channels, 16 digital channels (with optional probe), integrated protocol decoding, and waveform generation capabilities, the MSO5034HD is a versatile tool for any lab environment. All backed by up to a five-year warranty.

Features and Specifications

• 12-bit Vertical Resolution – Reveals signal details missed by conventional 8-bit oscilloscopes. Up to 4096 points, ensures that the waveform details are clearly visible

• 350MHz Analog Bandwidth – Ideal for embedded, automotive, and educational applications

• Up to 5GSa/s Sampling – Capture high-speed signal transitions

• 4 Analog Channels, and the memory depth of up to 500 Mpts

• 16 Digital Channels – Mixed-signal analysis made simple with synchronized digital capture (requires probe UT-M15)

• Ultra Phosphor 3.0 Engine – Up to 1.5M wfms/s sequence mode with 256-level display grading

• 4M FFT Points – Enhanced spectral analysis with waterfall view and multi-marker support

• Maximum Waveform Capture Rate - up to 800,000 wfms/s (sequence mode: 1,500,000 wfms/s)

• Protocol Decoding – UART, I²C, SPI standard; CAN, LIN, FlexRay optional

• Multiple Trigger Types – edge, pulse width, video, ramp, runt pulse, over-amplitude pulse, delay, timeout, duration, setup & hold, Nth edge, and code pattern.

• Multiple Peripheral Interfaces – USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM), Gen Out, HDMI

• 10.1-inch HD Capacitive Touchscreen Display – with gesture support

Additional Highlights

• Navigation and Search Function – Improves efficiency and saves time

• Uninterrupted Hardware Real-time Waveform Recording and Analysis – up to 400,000 frames and supports USB memory export function

• Mask Testing – rapidly validate waveform compliance using predefined templates

• 56 Kinds of Parameter Measurements

• Multi-channel 7-digit Hardware Frequency Meter - supports frequency refresh time and adjustable effective digit settings

• DVM Multi-Channel RMS Measurement – DC, AC RMS, and DC+ACRMS

• Digital Filtering and Signal Conditioning – Reduce unwanted noise and highlight signal behavior. Filters can be configured per channel with adjustable frequency ranges

• Supports ERES (enhanced resolution) of up to 4-bit

• Supports SCPI (Standard Command for Programmable Instruments)

• UNI-T Free Instrument Manager for Control – management software on the PC side through LAN, or USB Device

• Built-in WebServer – access and control the instrument via browser, supports access from PC and mobile devices for cross-platform compatibility

• Optional Function Generator – 50MHz dual-channel AWG with Bode Plot capability

• Supports On-line Update

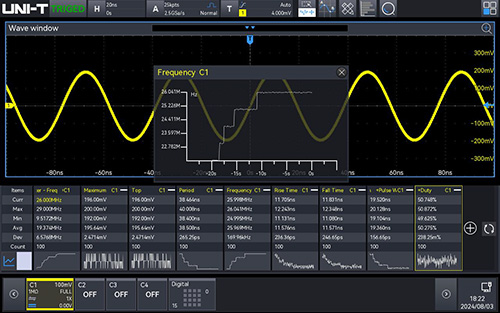

Multiple Parameter Measurements

Parameter measurement is an essential oscilloscope function for engineers. The MSO5000HD Series offers 56 measurement parameters and can display up to 27 simultaneously. Each statistics page shows nine parameters, which can also be visualized through histograms and trend charts. Histograms illustrate the probability distribution of values, while trend charts track changes over time. For single-channel analysis, the parameter snapshot provides 39 test items, including voltage and time measurements, with results continuously updated. The series introduces an improved amplitude calculation method using top and bottom strategies, making parameter measurement more convenient. Additionally, a new burst analysis feature displays burst-related parameters, enabling fast and accurate evaluation of channel data.

MSO5000HD Series – A Solution for Power Analysis, Manufacturing, Education and More

The MSO5000HD Series offers unmatched versatility for power electronics, semiconductor analysis, education, and automotive debugging. Its 12-bit resolution and low noise floor ensure precise ripple and switching measurements in power converters, while optional power analysis and Bode plot tools simplify frequency response and feedback tuning. For semiconductor characterization, it captures rise/fall times, propagation delays, and noise margins with 4096 vertical quantization levels for ultra-low amplitude signals. In academic and research settings, the MSO5000HD integrates nine instruments into one, streamlining labs and enabling hands-on learning. A responsive 10.1-inch touchscreen, zone triggering, and advanced math functions make waveform and protocol analysis intuitive for educators and students. Automotive engineers benefit from mixed-signal capabilities and support for CAN, CAN-FD, LIN, and FlexRay with optional decoders, enabling time-correlated analysis of digital logic, analog sensors, and ECU communication. Combining high-definition acquisition, comprehensive tools, and flexible application support, the MSO5000HD Series is an indispensable solution.

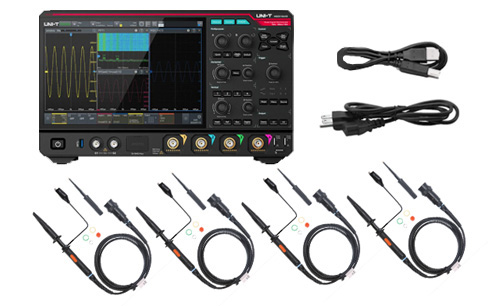

What's in the Box

• UNI-T MSO5034HD Oscilloscope

• 4 × UT-P07A 500MHz Passive Probes

• USB Cable (UT-D30)

• Power Cord

• BNC-BNC Cable (UT-L45) - not shown

• Alligator Leads (UT-L02A) - not shown

• Calibration Certificate - not shown

Frequently Asked Questions

• Does the MSO5034HD include a signal generator?
  An upgrade for a 50 MHz dual-channel function/arbitrary waveform generator is available with the optional MSO5000HD-AWG.

• What makes the 12-bit resolution significant?
  12-bit resolution means 16 times finer granularity than standard 8-bit scopes, revealing subtle signal variations crucial in sensitive analog and power applications.

• Are there 16 channels with the MSO5034HD?
  Yes, a 16-channel logic analyzer (hardware standard) can be used with the purchase of a UT-M15 logic analyzer probe (optional). The probe provides a maximum sampling rate of 1.25 GSa/s, a maximum memory depth of 500 Mpts and an input impedance of 101 kΩ +/-1% with the capacitive load of only 9.0 pF.

• Is there a Bode Plot Analyzer option on the MSO5034HD?
  Yes, the UNI-T MSO5034HD features a Bode Plot Analyzer as part of its integrated nine-in-one functionality. This feature works in conjunction with the optional arbitrary waveform generator (MSO5000HD-AWG), allowing you to perform frequency response analysis and feedback loop tuning directly on the oscilloscope.
