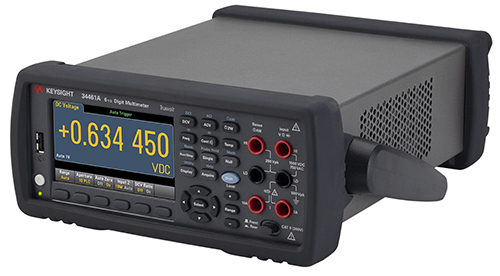

Keysight 34461A Digital Multimeter
Features and Specifications
Measure up to 1000 VDC, 750 VAC with 6-1/2 digits resolution
1-year DCV basic accuracy 35 ppm
1,000 readings/s, 10,000 reading memory, plus front panel USB
DCV, ACV, DCI, ACI, 2- and 4-Wire Resistance, Frequency,
Period, Continuity, Diode, Current, Temperature4.3-inch color graphical display with Number, Histogram,
Bar Chart, Trend Chart, Math and StatisticsIndustry's only 100% drop-in, SCPI compatible replacement for the
Keysight 34401A Digital MultimeterStandards: UL, CSA, CE
USB and LAN/LXI included (Optional GPIB)
Three-year warranty

The Best Just Got Better
The Keysight 34461A 6-1/2 digit digital multimeter (DMM) offer Truevolt technology that provides measurement and display capabilities like you've never experienced before. Keysight's exclusive Truevolt technology is based on patented analog to digital converter technology and eliminates extraneous factors like noise, injected current and input bias current from measurements to give you the highest confidence in your measurement accuracy. This new technology allows you to focus more on the quality of your designs rather than worrying about the quality of your measurements. The new graphical display capabilities allow you to easily display, save and document your results.
Truevolt Technology
Real-world signals are never flat. They have some level of AC signal riding on top from power line noise, other environmental noise, or injected current from the meter itself. How well a DMM deals with extraneous factors and eliminates them from the true measurement makes a big difference to its accuracy. Using patented analog-to-digital converter technology, Keysight Truevolt Series DMMs account for measurement errors created by these real-world factors, so engineers can be confident in their measurements.

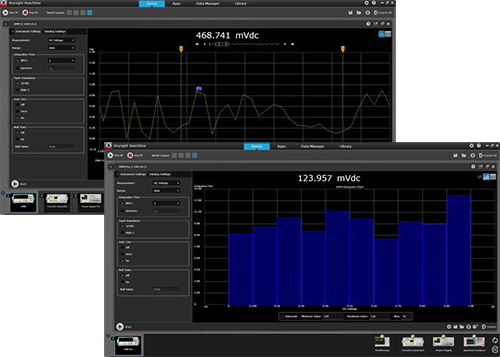

Save and Document Data to Your PC or Mobile Device
Capture a digitized record, log measurements for longer periods under PC control or upload data captured directly from the instrument with the DMM app in BenchVue. Export data from a single DMM, or multiple DMMs with time alignment, to popular tools such as Microsoft Excel, Microsoft Word and MATLAB. Simplify test documentation and data analysis without the hassles of programming.
Pathwave BenchVue
Visualize multiple measurements simultaneously
Easily log data, screen shots and system state
Rapidly prototype custom test sequences
Recall past state of your bench to replicate results
Export measurement data in desired format fast
Quickly access manuals, drivers, FAQs and videos
Monitor and control bench from mobile devices
*PathWave BenchVue Basic app is free. Technical support is not included.
Truevolt Series
The Truevolt Digital Multimeter series includes four models featuring advanced analysis modes, built-in math functions, and Keysight’s patented Truevolt technology. This technology ensures high accuracy, resolution, and speed, all compliant with ISO/IEC 17025 standards. With the ability to measure ultra-low currents down to the picoampere level, Truevolt DMMs are ideal for testing low-power devices.
34460A | 34461A | 34465A | 34470A | |
---|---|---|---|---|
Resolution | 6½ digit | 6½ digit | 6½ digit | 7½ digit |
Input terminals | Front | Front and rear | Front and rear | Front and rear |
Basic DCV accuracy | 75 ppm | 35 ppm | 30 ppm | 16 ppm |
Max reading rate | 300 readings/s | 1,000 readings/s | 50,000 readings/s | 50,000 readings/s |
Measurements | DCV, ACV (RMS), DCI, ACI, 2- | DCV, ACV (RMS), DCI, ACI, 2- | DCV, ACV (RMS), DCI, ACI, 2- | DCV, ACV (RMS), DCI, ACI, 2- |
DCV, ACV | 100 mV - 1000 VDC, 750 VAC | |||
DCI | 100 µA - 3 A | 100 µA - 3 A, 10 A | 1 µA - 10 A | 1 µA - 10 A |
ACI | 100 µA - 3 A | 100 µA to 10 A | 100 µA to 10 A | 100 μA to 10 A |
2- and 4-wire | 100 Ω to 100 MΩ | 100 Ω to 100 MΩ | 100 Ω to 1 GΩ | 100 Ω to 1 GΩ |
Continuity | 300 samples/s with audible tone | |||
Diode | 5V | 5V | 5V | 5V |
Frequency, period | 3 Hz to 300 kHz | 3 Hz to 300 kHz | 3 Hz to 300 kHz | 3 Hz to 300 kHz |
Temperature | RTD/PT100, thermistor | RTD/PT100, thermistor | RTD/PT100, thermistor, | RTD/PT100, thermistor, |
Truevolt | ||||
• AC measurements | • Digital AC (direct digital sampling) 10:1 crest factor | |||
Graphical display | Color, WQVGA | |||
Color, graphical, histogram, | Color, graphical, histogram, bar | Color, graphical, histogram, bar | Color, graphical, histogram, bar | |
Compatibility | 100% SCPI language | Compatible to 34410A and 34411A | ||
Memory | Front panel USB | Front panel USB | ||
1,000 readings | 10,000 readings | 50,000 readings standard | 50,000 readings standard | |
I/O connectivity | included: USB | included: USB, LAN/LXI | included: USB, LAN/LXI | included: USB, LAN/LXI |
What's in the Box
344601A 6-1/2 digit digital multimeter
Power cord
Calibration certificate
34138A test lead set (probes and fine-tip probes)
SMT grabbers and mini grabber attachments
Documentation CD
IO Libraries CD
USB cable
