Mastercool 99946-BT-2 Smart Manifold, Spartan, 4 Way, Two Clamps, 60" Hoses, Includes Case

SPARTAN Smart Manifold (4 Way, with Two Clamps and 60" RYB/Vacuum Hoses, and Case)

Mastercool introduces the new SPARTAN series smart manifold with Bluetooth wireless technology. This smart manifold is equipped with a 4" color touchscreen LCD, allowing the user to navigate through all of the screens and options with a quick slide of their finger. Now with a built-in premium vacuum sensor and an accuracy down to 1 micron, there is no need for additional equipment to properly diagnose and service your A/C system.

Offered in 2-way and 4-way options, this manifold will display pressure, vacuum, temperature, and will automatically calculate your superheat and subcool. Both models include data logging and will offer additional features such as leak test timers and alarms but that's not all! In conjunction with this manifold will be the ability to download our free Mastercool Connect app, which will provide full mobility as activity can be easily viewed on all compatible hand-held devices. This will allow for endless amounts of data collection and diagnostics at your fingertips.

• 4 way manifold

• Includes two Temperature Clamps

• Includes 60" RYB and Vacuum Hoses

• Displays pressure, vacuum, and temperature, and will automatically calculate superheat and subcooling

• 4.3" color touchscreen provides easy navigation with the touch of a finger

Several versions available

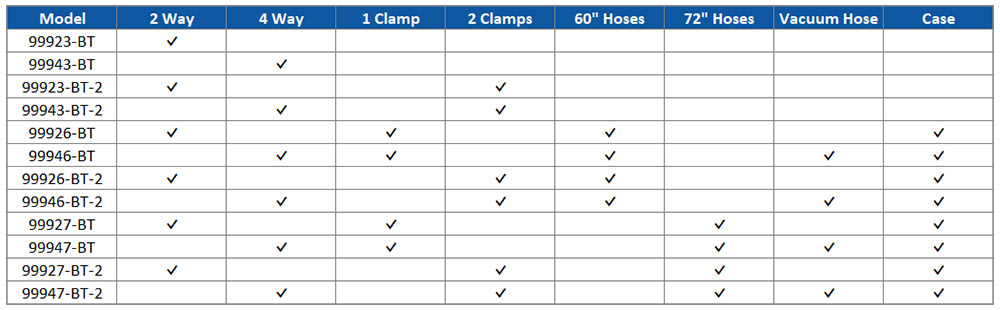

Mastercool offers several versions of its SPARTAN manifold. These are built as either 2 or 4-way and come with a variety of accessories including temperature clamps, and refrigerant and vacuum hoses. The chart below provides an overview of each:

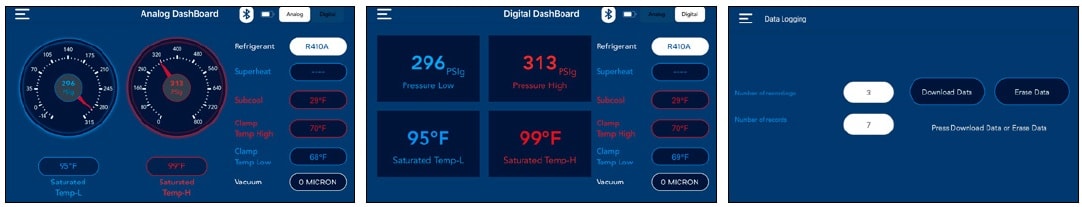

Mastercool Connect App

The Mastercool Connect App is used exclusively with Mastercool’s Bluetooth® capable HVAC and automotive service tools and equipment. This

app provides full mobility for our Bluetooth® enabled products as live activity can be easily viewed on all compatible hand-held smart devices. The

Mastercool Connect App require iOS versions 11 or later and Android versions 6 or later.

Simply download the free Mastercool Connect app to begin receiving and analyzing data

from any nearby Mastercool enabled Bluetooth® device.

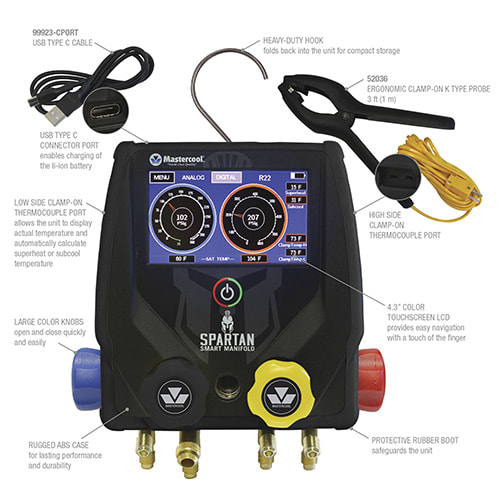

Features:

• Class 1.0 gauge provides accurate, high quality readings

• 4.3” color touchscreen to navigate with a quick slide of the finger

• Premium built in vacuum sensor with a resolution down to 1 micron

• Displays pressure, vacuum, temperature, and will automatically calculate superheat and subcool temperatures

• Over 60 pre-programmed refrigerants included

• Bluetooth wireless technology provides communication with the Mastercool Connect app to allow for full mobility as activity can be easily viewed on all compatible hand-held devices

• Low battery indicator on the LCD shows when battery needs charging

• Record and store up to 36 hours of data to the manifold memory

• Optional premium temperature clamp with K-type connector

• Auto-off after 30 minutes of inactivity helps to conserve battery life

• Pressure leak test function displays delta for both vacuum and positive pressure measurements

• Easily switch between digital and analog depictions of pressure and temperature

• Simple calibration for ultimate utility
