Mitutoyo 570-414 Height Gauge, ABSOLUTE Digimatic, LCD, 0-18", 0.0005", Slider Feed Wheel, Series 570

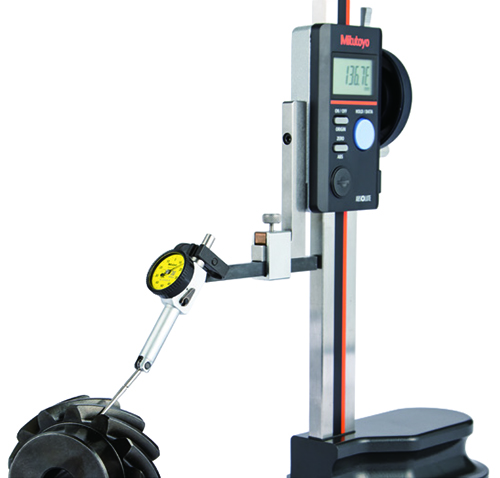

Mitutoyo 570-414 ABS Digimatic Height Gage (0–24"/600mm)

The Mitutoyo 570-414 ABS Digimatic Height Gage is engineered to deliver accurate, repeatable measurements in demanding inspection and production environments. Designed with advanced digital functionality and a robust mechanical structure, this height gage is ideal for quality control, machining, and industrial metrology applications.

With a 0–24 inches (0–600 mm) measuring range, integrated Absolute (ABS) technology, and compatibility with wireless data systems, the 570-414 brings reliable performance and smart factory readiness together in one powerful tool.

Product Highlights

• Wide measuring range: 0–24" / 0–600 mm

• High accuracy: ±0.0020 in (±0.05 mm)

• Absolute (ABS) scale technology eliminates re-zeroing errors

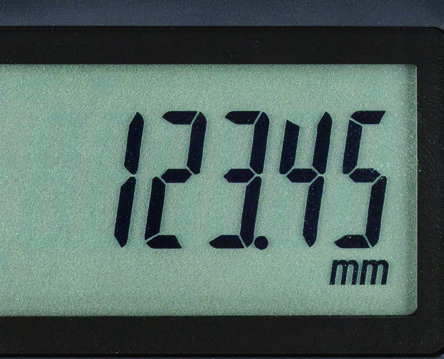

• Large LCD display with 12 mm character height for better visibility

• Dual inch/metric functionality for flexible measurement

• Digimatic data output for seamless data collection

• Compatible with U-WAVE wireless system for smart factory integration

• Smooth slider-feed wheel ensures precise vertical movement

• Long battery life: up to 20,000 hours continuous use

• Three-button intuitive operation for ease of use

Precision Accuracy & Reliable Performance

The Mitutoyo 570-414 delivers exceptional measurement accuracy and reliability thanks to its advanced ABS (Absolute) encoder technology, which maintains the origin point even after power-off. With a precision of ±0.0020 inches (±0.05 mm), it ensures consistent and repeatable results across demanding inspection tasks. This high level of accuracy makes it ideal for quality control environments where precision and confidence in measurements are critical.

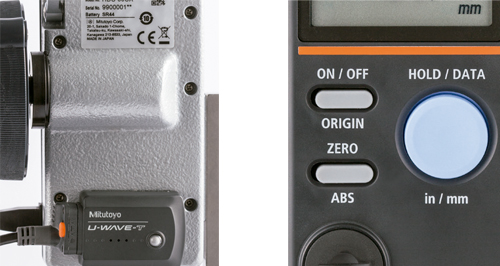

Smart Data Integration & User-Friendly Operation

Designed for modern manufacturing, this height gage also supports smart data integration and streamlined workflows. Its built-in Digimatic output allows for easy connection to SPC systems, while optional U-WAVE wireless compatibility enables seamless data transfer to PCs and inspection systems. Combined with a large, high-visibility LCD display and a simplified three-button interface, operators benefit from intuitive controls, faster data capture, and reduced risk of input errors.

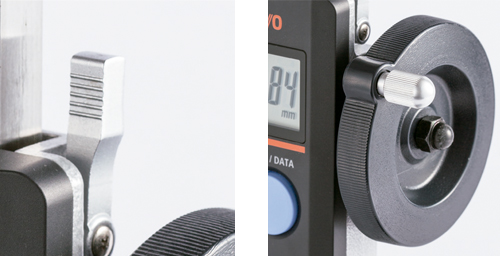

Durable Design & Versatile Measurement Capability

Built with durability and usability in mind, the 570-414 features a rigid structure, smooth slider-feed mechanism, and ergonomic controls for efficient operation during extended use. Its versatile design supports a wide range of applications—including height, depth, and step measurements—with additional accessories available to expand functionality. Manufactured to Mitutoyo’s high standards, this gage offers long-term reliability, extended battery life, and dependable performance in both shop floor and laboratory environments.

The Mitutoyo 570-414 Height Gage combines precision engineering, digital innovation, and operator-friendly design to meet the needs of today’s manufacturing environments. Whether you’re performing routine inspections or integrating into a smart factory system, this height gage delivers the accuracy, durability, and efficiency professionals demand.
