Fluke Networks FTK1200 Simplifiber Pro Multimode Fiber Verification Kit

SimpliFiber Pro Optical Fiber Test Kits provide all the tools needed to verify proper installation and maintain fiber‑optic cabling systems. Each kit includes several specialized fiber platforms: the power meter, the multimode or singlemode sources, and the FindFiber Remote ID source. Every platform offers distinct, competitive features and is bundled into convenient kits designed to meet the demands of today’s technicians. Time-saving capabilities such as CheckActive, FindFiber, and Min/Max make SimpliFiber Pro the best fiber test kit on the market.

Product Highlights

• Single-port, simultaneous dual-wavelength feature completes testing in half the time and saves measurements from both wavelengths into one record

• CheckActive feature emits an audible tone and displays an icon when a live fiber is detected, eliminating the need to set up a measurement

• Min/Max capability automates precision tracking of intermittent power fluctuations

• Large internal memory save 1000 results which enables continuous testing and recording

• LinkWare Cable Test Management software helps to analyze test results and create professional test reports

Optical Power Meter to Improve Fiber Testing

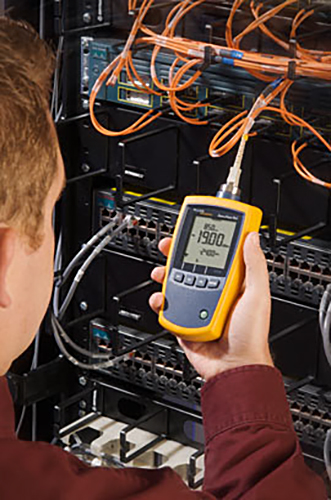

The SimpliFiber Pro meter features the ability to store a reference power level, enabling a direct display of fiber loss. It also includes an intuitive four‑button control panel, a large LCD screen, and a serial port. A single connector design allows simple network connection and straightforward reference power measurement. Time-saving capabilities such as CheckActive, FindFiber, and Min/Max make SimpliFiber Pro one of the best meters on the market. In addition, interchangeable connector adapters are available in the most commonly used styles. This makes the tester versatile across different fiber installations.

SimpliFiber Pro Features

1. On/off key

2. Softkeys (to functions on display)

3. Measurement mode

4. LCD Display

5. Input port

6. USB port

7. Auto wavelength mode

8. Continuous wave & 2kHz modulated output signals

9. Selects FindFiber mode

10. Low battery LED

11. Output port with SC adapter

The SimpliFiber Pro Optical Power Meter is calibrated for accuracy at six different wavelengths (850, 1300, 1310, 1490, 1550, 1625). The meter’s single connector permits simple network connection and straightforward reference power measurement. The multimode source is a dual wavelength 850/1300 source and incorporates an 850 nm LED and a 1300 nm LED.

Verify and Locate Faults with VisiFault Locator

The laser-powered VisiFault Visual Fault Locator verifies continuity and polarity, and helps find breaks and bends in cables, and locate problems in connectors and splices. VisiFault emits a bright beam of red light easily visible from a distance. Connect the VisiFault to one end of a fiber - then locate that fiber at the other end, even if it is one of many fibers either in a cable or terminated in a rack. Perform simple end-to-end continuity checks.

VisiFault can quickly illuminate fiber breaks, damaged connectors on patch cords, defective splices in splice trays, and tight fiber bends in and around equipment racks. The choice of a continuous wave output mode for steady fault illumination or a flashing output mode makes for easier fault location.

The integrated universal 2.5 mm adapter makes for easy connection to SC, ST, FC, and FJ connectors. The optional 1.25 mm adapter allows for connection to LC and MU connectors. Attach the VisiFault to your belt using a lanyard or in the carrying case so it is always on hand when you need it. Long battery life for hours of use, includes two AA batteries giving you more than 80 hours of continuous mode battery life.

FindFiber for Fast Cable-Routing Identification

FindFiber Remote ID enables one individual to quickly identify cable connections or routings (especially useful at patch panels), eliminating the need for multiple technicians on opposite ends of a fiber link to match color combinations.

What's in the Box

FTK1200 Multimode Verification Kit:

• Simplifiber Pro Optical power meter

• 850/1300 multimode source

• VisiFault VFL

• FindFiber Remote ID source

• Magnetic Strap attachments

• Carrying case

• SC, ST, and LC power meter adapters
