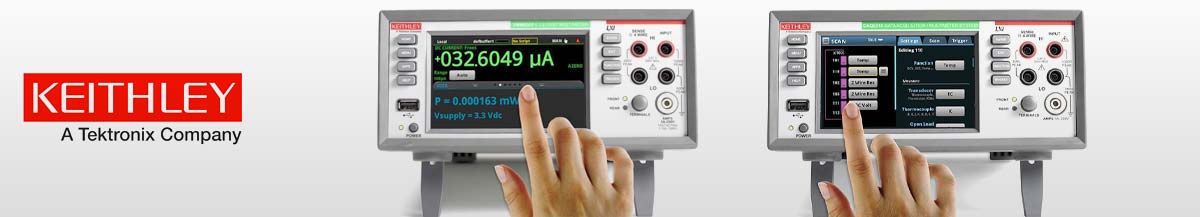

Keithley DMM6500 and the DAQ6510

Keithley DMM6500 and the DAQ6510

Data Acquisition and Logging Multimeter System

Touchscreen, Digitizing, Multiple Interfaces and More. GUI simplifies setups without needing a PC.

Unprecedented functionality and measurement analysis at a Great Price
The DMM6500 is a modern bench/system DMM delivering more measurement functionality and best-in-class measurement insight. The large 5-inch (12.7 cm) capacitive touch screen display that makes it easy to observe, interact with, and explore measurements with “pinch and zoom” simplicity.

15 Built-in Measurement Functions for a Wider Range of Measurements

  • 100 nV - 1000 V with 0.0025% basic accuracy
  • 1 μ - 100 MΩ
  • 10 pA - 10 A
  • 0.1 pF - 100 μF
  • -200˚C to 1820˚C
  • Up to 1M sample/s digitizing

Analyze Graphs and Trends Directly on the Touchscreen Display for Faster Measurement Insights.

  • 5-inch multi-touch capacitive touchscreen with graphical display
  • Pinch and zoom simplicity for in-depth waveform analysis
  • Visualize and analyze waveforms using adjustable cursors and statistics
  • 15 measurement functions incl. capacitance, temperature, and digitizing
  • Large internal memory; store up to 7 million readings
  • USB-TMC and LXI/Ethernet standard

Simplified setups, Real time Status, and Analysis in a precision data acquisition and Logging System
Creating a new level of simplicity, the DAQ6510 touchscreen user interface enables faster setup time, real time monitoring of test status, and detailed data analysis on the instrument.

Reduce Test Configuration, Execution, and Analysis Time

Save Test Time in Automated Test Systems

Setup a multi-channel scan using one configuration menu. Select how you want to store data in the Scan menu.



Monitor scans in real time to detect and correct setup problems early.

Quickly and easily monitor the status of a test using the DAQ6510 scan status screen.



Display and analyze test data using the plotting and statistics functions.

Graphically view data during or at the end of a test. Display up to 20 channels on one plot.

PROMO - Through 3/31/19, KickStart Software (KICKSTARTFL-BASE) included with DMM6500 or DAQ6510.

Visit the DMM6500 and DAQ6510 web pages to see all their features, learn more about KickStart Software and get pricing information.

 DMM6500 6½-Digit Bench/System DMM               DAQ6510 Data Acquisition and Logging Multimeter System
