• The Stainless Steel Buckle Strap Cleat is an effective option for protecting against high short circuit fault current requirements in harsh environments.
• The strap is made of 316L stainless steel, has inherent cable range-taking, and is compatible with quad, trefoil, and multicore cables.
• The cleat is installed after running the cable via a unique in the industry mounting bracket. It is tensioned and cut using a manually-operated, ratchet-style installation tool or a tension screw drive installation tool.
• The straps have rounded edges to protect from damaging the cable and are often used in combination with a cushion sleeve inserted between the strap and cable for added protection

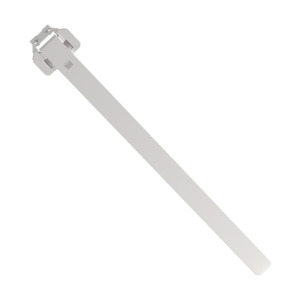

The MS8W75T30-Q6 Discrete Length Stainless Steel Buckle Strap cable cleat is an effective option for protecting against high short circuit fault current requirements in harsh environments. The variable design is compatible with quad, trefoil, and multicore cables and certified to IEC61914:2015, for use up to 188kA peak fault current. The product features a low-profile fold-over buckle, 316L AISI Stainless Steel, 838mm length, 19mm width, 10656N tensile strength, and 203mm bundle capacity.
