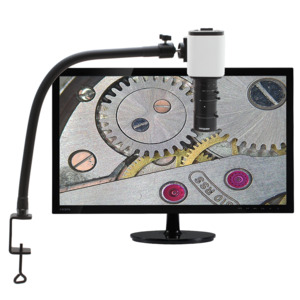

Aven 26700-121-PRO Microscope, Digital, 70X, Ring Light, Flex Stand, Mighty Cam Pro Series

Our Part #10018164

Mfr Part #26700-121-PRO

Aven 26700-121-PRO
Aven
Aven

Aven 26700-121-PRO Microscope, Digital, 70X, Ring Light, Flex Stand, Mighty Cam Pro Series

Our Part #10018164

Condition:New

Mfr Part #26700-121-PRO

$2,454.49EACH
Qty:Price:Savings
1$2,454.49
2$2,331.77Save
3$2,282.68Save
5$2,258.13Save

High definition 1080P auto focus inspection system with a 22" monitor offering superb image quality at 60 frames per second. Working distance 6" with magnification range of 7x-70x. You can operate this system with or without a PC. Without a PC camera connects directly to the included HDMI monitor. View and record images and perform measurements using the included on screen tools. Images & videos can be saved to the included SD card. Connect the camera to a PC to utilize more advance features in the included software. The included LED ring light allows you to illuminate the object to get the sharpest and greatest detail.

  • Superior optics: 7x-70x magnification at a 6 inch working distance
  • Achieve instant auto focus – no need to adjust the focus of the lens
  • Ultimate flexibility: 18 inch flexible arm with a 360 ball joint provides limitless positioning options
  • Crystal clear viewing: 22 inch 1080p monitor
  • No computer required for image processing
  • LED ring light with 96 ultra-bright, adjustable LEDs
  • Eliminates the fatigue and eye strain associated with frequent microscope use

An Unprecedented High-speed Focusing Experience

The heart of this system is our Mighty Cam Pro auto focus camera. It offers both continuous and single-shot auto focus modes helping you increase your productivity. The camera also supports mouse wheel control for fine tuning. Data transfer up to 60 frames per second enables users to get clear images with ease.

The Mighty Cam Pro features dual outputs - USB and HDMI - for use with a PC or an HD monitor.

Perfect Color Reproduction

Camera's color processing is capable of a new level of precision producing extremely high color definition.

Integrated Measurement System - No PC Required

Built in on screen tools provide powerful measurement functions including freehand line, rectangle, polygon, circle, bicircle, angle, point-line distance and much more. Three different length units of millimeter, centimeter and micrometer are provided to meet various measurement requirements in different applications. Simple calibration tool is also included.

Connect Camera To a PC to Utilize More Advance Features

The included computational imaging software provides users with more functions such as:

  • Auto focus fine tuning
  • Intelligent capture and processing
  • Efficient measurement and attribute editing
  • Reporting

Stitching Feature

Utilizing the Mosaic software package, operators can generate large panoramic images. Simply glide an object under the camera and the advanced software will stitch together images into one larger image.

Real Time Depth Of Field Fusion

The Mighty Cam Pro can change the depth of field without adjusting the optics. Simply click on the part of the image you want to focus on and the camera will bring that sector into focus.

Precision Engineered Macro Lens

The macro lens included with this system offers unsurpassed clarity and parfocal zoom capabilities. Provides manual adjustment of focal length, iris and focus. Lens has a C-mount and working distance of 6" to 18".

18" Flexible Arm Stands are a hassle-free addition to your inspection system. The arm easily bends and stays put in any position. Tilt, rotate, and position as needed.

LED Ring Light

Compact source of LED lighting with a fully adjustable high resolution dimmer that provides uniformity and shadow free illumination. Consists of 96 LED lights that do not heat or flicker. Adapter may be required to mount a micro video lens. Opening 50mm with 3 thumb screws for mounting

  • 96 High Intensity LED Lights
  • Continuous Brightness Control
  • Flicker Free
  • No color change with temperature
  • Energy saving

360 Ball Joint

Rotate and tilt the camera to the ideal position. Inspect from nearly any angle.


BrandAven
SeriesMighty Cam Pro Series
Working Distance6"
Base TypeFlex Stand
ESD SafeNo
IncludesMighty Cam Pro, Computar Lens, FlexArm With Table Clamp, 360 Ball Joint, Ring Light, 22" LCD HD Monitor
Lens10x Computar Lens
Magnification Range7x - 70x
Resolution3264x1836
Special FeaturesUSB Connection, HDMI Connection, SD Card Slot
TypeDigital
Type of Camera1080p Camera
Type of IlluminationLED Ring Light
