• Max VSWR of 1.2:1 up to 26.5 GHz
• SMA interface compliant with MIL-STD-348
• Gold Plated Beryllium Copper Contact

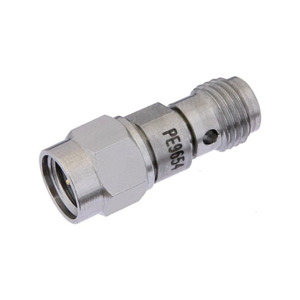

Pasternack’s PE9654 SMA male to 2.4mm female adapter features a male-to-female configuration in a precision design and operates up to 26.5 GHz. The SMA connector is mechanically compatible with commercially available 3.5mm and 2.92mm (K) connectors, while the 2.4mm connector is compatible with commercially available 1.85mm (V) connectors. This Pasternack RF adapter provides an excellent maximum VSWR of 1.2:1.

RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain adapter configurations can also be used to protect connectors on expensive equipment, especially where the number of connect/disconnect cycles is high. An RF, microwave, or millimeter-wave adapter is connected to the equipment, while the commonly changed connection is made with the adapter, which can be easily replaced when it wears out after extensive use; such adapters are referred to as connector savers.
