• 70 Shore D hardness
• Has 28-minute gel time at 140 °F (60 °C)
• Useful for coating coils, transformers, motors, modules, electrical and electronic components
• Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
• Elongates 19% longer than its original size for easy insulation or wrapping
• Chemicaland moisture-resistant

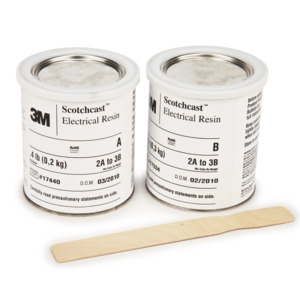

3M™ Scotchcast™ Electrical Resin 9N is a 2 part, liquid resin that is useful for electronic and electrical applications requiring the highest level of protection in the toughest environments. This filled epoxy based resin has a medium viscosity property, which makes it easy to infuse on any surface. It is useful for applications that include filling, patching, insulating and more.
3M™ Scotchcast™ Electrical Resin 9N has a low gel point rating to ensure curing at room temperature. The high tensile strength of the resin exhibits a semi flexible and good adhesion property after curing. It is ideal for applications that need excellent thermal shock and mechanical shock resistance. Its high dielectric strength offers excellent electrical insulating property to the resin. It has a high flash point, helping prevent any fire hazard in electrical components due to quick ignition. Since the resin exhibits a hydrolytic stability property, it minimizes quick chemical decomposition, thus providing long lasting usage. MIL I 16923E Certified and RoHS 2011/65/EU Compliant.
