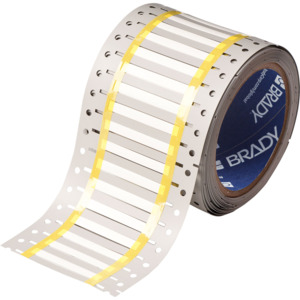

Brady 2HT-187-2-WT-S Heat Shrink, 3" core PermaSleeve, High Temp, 16-10 Gauge Wire Marking Sleeves
Our Part #10026092
Mfr Part #2HT-187-2-WT-S
Brady 2HT-187-2-WT-S Heat Shrink, 3" core PermaSleeve, High Temp, 16-10 Gauge Wire Marking Sleeves
Our Part #10026092
Condition:NEW
Mfr Part #2HT-187-2-WT-S
RoHS
Condition:NEW
RoHS
- Description
- Specifications
- Documents
PermaSleeve® Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications.
- 2:1 heat shrinkable sleeves are fade-resistant and flame-retardant, and meet the requirements of NASA Vacuum Outgassing specification SP-R-0022A
- Sleeves can be used in applications that require greater resistance to harsh chemicals such as fuels, lubricants and high power cleaning solvents
- Meets SAE-AMS-DTL-23053/18 (Class 2), SAE-AS-81531, MIL-STD-202, Tested per ASTM E 162, ASTM E 662;RoHS Compliant;and UL Recognized
- Operating temperature range of -67 to 437° F (-55 to 225° C)
- A ribbon is required to print this material. Use Part Number IP-R6000 for the BradyPrinter i5100 or BRADY IP® Series Label Printer; use R6000 for a different printer
Brand: Brady
Color: White
Alternate Product Number: 2HT-187-2-WT-S-6691
Compatibility: BBP72; i5100; i7100; PR Plus; IP Series; THT 3" Core Printers
Dimensions: 0.335" H x 2" W
Material: High Temperature Heat-shrink Polyvinylidene Fluoride
Note: 0.625 in Vertical Repeat
Package: Roll of 500 each
Print Technology: Thermal Transfer
Product Type: Wire Marker Sleeves
Wire Diameter: 0.094 to 0.15"
Wire Gauge Capacity: 16 AWG - 10 AWG
