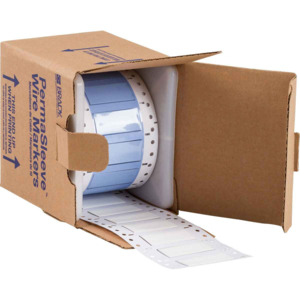

Brady PS-500-2-WT-S-2 3" Core Series PermaSleeve Wire Marker, B-342, White, 1-8 AWG
Our Part #10026732
Condition:NEW
Mfr Part #PS-500-2-WT-S-2
Has Expiration Date
RoHS
- Description
- Specifications
- Documents
The Brady PS-500-2-WT-S-2 is a wire marker sleeve with a primary color of white.
The Brady PS-500-2-WT-S-2 Specifications:- Brand: PermaSleeve®
- Product Type: Wire Marker Sleeve
- Marker Type: Heat-Shrink Sleeve
- Material: Polyolefin
- Material Category: Plastic
- Color: White
- Primary Color: White
- Width: 2in
- Height: 0.85in
- Wire Size: 8 to 1AWG
- Wire Diameter: 0.18 to 0.45in
- Supplied Diameter: 12.7mm
- Recovered Diameter: 4.7mm
- Brady Material Number: B-342
- Resistance Properties: Abrasion Resistant Chemical Resistant UV Light Resistance Humidity Resistance Solvent Resistance
- Standards Met: UL Recognized Component to UL Listed 224, UL File E333786, RoHS Compliant 2005/618/EC, SAE AMS-DTL-23053/5C (Class 1), SAE AS-81531, ASTM E162, ASTM E662, ASTM G155 Cycle 1, ASTM D2671, MIL-STD-202, Method 215K
- Package Quantity: 500RL
Brand: Brady
Color: White
Alternate Product Number: PS-500-2-WT-S-2-6691
Compatibility: BBP72; i5100; i7100; PR Plus; IP Series; THT 3" Core Printers
Dimensions: 0.851" H x 1" W
Material: Heat-shrink Polyolefin
Note: 1.25 in Vertical Repeat
Package: Roll of 500 each
Print Technology: Thermal Transfer
Product Type: Wire Marker Sleeves
Shelf Life: 1825 days
Wire Diameter: 0.187 to 0.45"
Wire Gauge Capacity: 8 AWG - 1 AWG
