Brady
Brady 3PS-125-2-WT-2 Wire Marking Sleeves, 3" Core, Double Sided, B-342, 5000 per Roll, 16-22 AWG
Our Part #10027808
Mfr Part #3PS-125-2-WT-2
Brady
Brady 3PS-125-2-WT-2 Wire Marking Sleeves, 3" Core, Double Sided, B-342, 5000 per Roll, 16-22 AWG
Our Part #10027808
Condition:NEW
Mfr Part #3PS-125-2-WT-2
Has Expiration Date
RoHS
Condition:NEW
Has Expiration Date
RoHS
- Description
- Specifications
- Documents

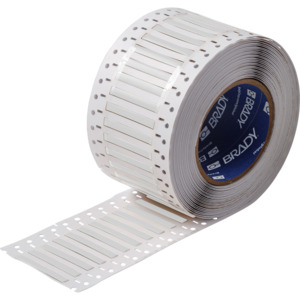

The is a white, polyolefin, 0.23 x 1" wire marker sleeve. The flexible, flame retardant sleeve offers fast and permanent wire marking solutions.
Features:- Brand: PermaSleeve®
- Product Type: Wire Marker Sleeve
- Marker Type: Heat-Shrink Sleeve
- Material: Polyolefin
- Material Category: Plastic
- Color: White
- Primary Color: White
- Width: 1in
- Height: 0.23in
- Wire Size: 22 to 16AWG
- Wire Diameter: 0.04 to 0.11in
- Supplied Diameter: 3.2mm
- Recovered Diameter: 1.2mm
- Brady Material Number: B-342
- Resistance Properties: Abrasion Resistant, Chemical Resistant, UV Light Resistance, Humidity Resistance, Solvent Resistance
- Standards Met: UL Recognized Component to UL Listed 224, UL File E333786, RoHS Compliant 2005/618/EC, SAE AMS-DTL-23053/5C (Class 1), SAE AS-81531, ASTM E162, ASTM E662, ASTM G155 Cycle 1, ASTM D2671, MIL-STD-202, Method 215K
- Packag
Brand: Brady
Color: White
Alternate Product Number: 3PS-125-2-WT-2-6691
Compatibility: BBP72; i5100; i7100; PR Plus; IP Series; THT 3" Core Printers
Dimensions: 0.235" H x 1" W
Material: Heat-shrink Polyolefin
Note: 0.5 in Vertical Repeat
Package: Roll of 5000 Each
Print Technology: Thermal Transfer
Product Type: Wire Marker Sleeves
Shelf Life: 1825 days
Wire Diameter: 0.046 to 0.11"
Wire Gauge Capacity: 22 AWG - 16 AWG
