• Offers long-life, energy-efficient, instant on/off performance
• High UV intensity: up to 2.5 W/cm²
• Large cure area: 100mm x 100mm
• LED heads side-by-side stackable
• Included in the box: (1) CL42 Light Source, (1) connection cable, (1) operating manual

High intensity large cure-area flood head

Part of a high intensity flood system specially designed for curing LOCTITE® UV and visible light cure adhesives.

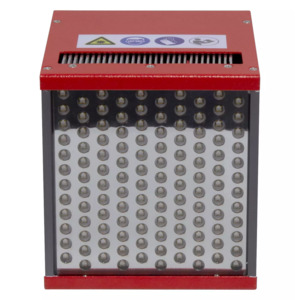

The LOCTITE® CL42 LED Flood Curing Light Sources are part of the LOCTITE CL42 LED Flood Curing System, specially designed for curing LOCTITE UV and visible light cure adhesives. The modular configuration consists of LED light sources with controller and connection cable. The system is offered in either 365nm or 405nm wavelengths. Each CL42 head is equipped with 120 high power LEDs and integrated reflectors, providing uniform curing across a wide area (100mm x 100mm). The expected lifetime of the LEDs is more than 20,000 hours under normal operating conditions. The system is compatible with a manual workstation as well as with automated production lines. It can be operated via a foot switch, or a PLC run in either timer or continuous mode. Long-life, energy-efficient, instant on/off performance: the LOCTITE® CL42 is a great choice among dual control light-curing flood lamp systems.
