3M 7010398772 Glass Cloth Electrical Tape 69, 3"x36 yes, 3-in paper core

Our Part #10028176

Mfr Part #7010398772

3M 7010398772
3M
3M

3M 7010398772 Glass Cloth Electrical Tape 69, 3"x36 yes, 3-in paper core

Our Part #10028176

Condition:NEW

Mfr Part #7010398772

Has Expiration Date
RoHS
$184.64Roll

Condition:NEW

Has Expiration Date
RoHS

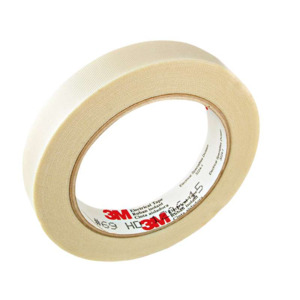

Scotch® Tape 69 is a premium grade, edge tear resistant, electrical tape. This printable tape has a non corrosive adhesive and offers solvent resistant protection. It is used as a coil cover, an anchor, a banding, a core, a layer and a crossover insulator. The flame retardant tape is suitable for 600V rated, dry location application motors and transformers.

Scotch® Glass Cloth Electrical Tape 69 features a pressure sensitive, high temperature, thermosetting, silicone adhesive that offers excellent bonding once adhered. This conformable tape has a glass cloth backing that resists rotting and shrinking while providing excellent stability. It withstands a temperature range of 32 to 392 °F (0 to 200 °C). UL Listed, Mil I 19166C, CSA Certified and ?RoHS 2011/65/EU Compliant.

Features:
  • Thermosetting, silicon adhesive provides an increased bond at high temperatures
  • Glass cloth backing optimally resists resist shrinking and burning
  • Used as a coil cover, anchor, banding, core, layer and crossover insulation
  • Printable and provides high mechanical strength and excellent performance by withstanding high temperatures
  • Withstands a temperature range of 32 to 392 °F (0 to 200 °C)
  • UL Listed, Mil-I-19166C, CSA Certified and RoHS 2011/65/EU Compliant
Specifications:
  • Color: White
  • Part Number: 69 3"X36YD
  • Width: 3 in

Brand3M
TypePremium Grade
Length36 yd.
Width3"
ColorWhite
Thickness7 mil
Adhesion Strength40 oz./in.
Adhesive MaterialSilicone
Alternate Product Number3M693
ApplicationsInsulating Electric and Induction-Type Furnace Power Supply Leads, Securing High-Temperature, Non-PSA Insulation (such as Asbestos and Glass) in High-Temperature Areas, Securing Scotch Fire Retardant Electric Arc Proofing Tape 77, Splicing Wire SF and Sff
Backing MaterialGlass Cloth
Dielectric Strength3000 V
Series69 Series
Shelf Life1825 days
StandardsMilitary Specification No. MIL-I-19166C, UL Recognized Component Listing for 200˚C (GuideOANZ2, File E17385), CSA Accepted Component 180˚C file LR93411
Temperature Range32 to 392°F
Tensile Strength180 lb./in.
$184.64Roll
