3M

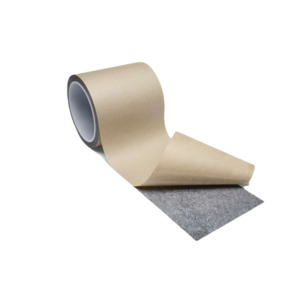

3M 7100110654 Electrically Conductive Adhesive Transfer Tape 9712, 1/4"x36yds
Our Part #10028509
Mfr Part #7100110654
3M
3M 7100110654 Electrically Conductive Adhesive Transfer Tape 9712, 1/4"x36yds
Our Part #10028509
Condition:NEW
Mfr Part #7100110654
RoHS
$36.09Roll
Multiples of: 36
RoHS
- Description
- Specifications
3M™ XYZ/Isotropic ECATT 9712 is a standard adhesion, double-sided, isotropically conductive pressure-sensitive tape which conducts electricity through the thickness (the Z-axis) and the plane of the adhesive (X, Y planes).
Standard Lead Time: 14 Calendar Days
Features:- Slightly thicker adhesive than Tape 9713
- Isotropic XYZ-axis electrical connectivity
- Uses non-woven carbon scrim that usually leads to higher surface contact resistance than Tape 9713
- Good contact with both hard and soft surfaces
- Excellent die-cutting and converting capabilities
- Part Number: 9712
- Width: 0.25 in
Brand: 3M
Type: XYZ-Axis Conductive
Length: 36 yd.
Width: 0.25"
Thickness: 0.005"
Adhesive Type: Standard Acrylic ECATT
Adhesion Strength: 55 oz./in.
Adhesive Material: Filled Acrylic
Alternate Product Number: 00021200461811-31196
Applications: For EMI/RFI Shield and EMI/RFI Gasket Attachment to Metal Surfaces
Backing Material: Conductive Fiber
Series: 9712 Series
$36.09Roll
Multiples of: 36
