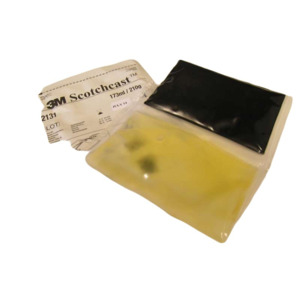

3M™ Scotchcast™ Electrical Resin 2131 is a 2 part, flame retardant compound, useful for coating cable jackets when splicing or repairing mine and portable cables. This permanent, polyurethane, liquid type resin has a unique formulation used in rugged conditions. The high dielectric strength offers a very good electrical insulating property to the resin.

3M™ Scotchcast™ Flame Retardant Resin 2131 has low gel point rating to ensure curing at room temperature. The high tensile strength of the resin exhibits a semi flexible property and good adhesion property after curing. It is ideal for applications that need excellent thermal shock and mechanical shock resistance. It has a high flash point, preventing any fire hazard due to quick ignition. The flame retardant resin allows you to insulate cable splices operating up to 1 kV and to seal the crotch or sheath when terminating multi core cables. RoHS 2011/65/EU Compliant.

• Typical hardness (ASTM D2240) - 82 Shore A
• Has 17-minute gel time at 73 °F (23 °C)
• Useful for replacing or repairing the jacket on both single- and multi-core power cables
• Withstands a temperature range of 32 to 194 °F (0 to 90 °C)
• Elongates 339% longer than its original size for easy insulation or wrapping
• Flame-retardant
• Rated up to 1 kV
• RoHS 2011/65/EU Compliant

• Color: Black
• Hardness: 80 Shore A
• Material: Polyurethane
• Part Number: 2131-PART B 5 GAL
• Product Type: Resin
• Voltage: 1 kV
