3M

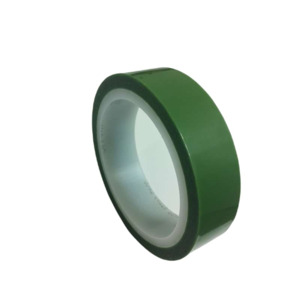

3M 7010045055 Greenback Printed Circuit Board Tape 851 Green, 3"x72yds x 4.0 mil
Our Part #10029339
Mfr Part #7010045055
3M
3M 7010045055 Greenback Printed Circuit Board Tape 851 Green, 3"x72yds x 4.0 mil
Our Part #10029339
Condition:NEW
Mfr Part #7010045055
Has Expiration Date
RoHS
$136.26Roll
Multiples of: 12
Condition:NEW
Has Expiration Date
RoHS
- Description
- Specifications
3M™ Circuit Plating Tape 851 with polyester film and blended silicone and rubber adhesive used for PCB masking and other high temperature applications. Thick adhesive coating. Green, 4.0 mil thick.
Standard Lead Time: 20 Calendar Days
Features:- Polyester backing reduces stretch and recovery of tape associated with uneven stop-off line
- Thick adhesive coating reduces undercutting because adhesive blocks out solutions between fingers
- Specially designed adhesive that generally performs better when no ovens are used to heat tape and boards
- Polyethylene tape core instead of cardboard
- Color: Green
- Part Number: 851
- Width: 3
Brand: 3M
Adhesion Strength: 29 oz./in.
Adhesive Material: Blended Silicone & Rubber
Alternate Product Number: 021200052477-31196, 00021200052477-31196
Applications: Masking Printed Circuit Boards During Solder Stripping and Precious Metal Plating of Fingers, Splicing of Silicone Coated Papers
Backing Material: Polyester Film
Color: Green
Dimensions: 3 in x 72 yd 4.0 mil
Height: 3"
Length: 4.6"
Series: 851 Series
Shelf Life: 547 days
Tensile Strength: 26.8 lb./in.
Thickness: 3.6 mil
Width: 3
$136.26Roll
Multiples of: 12
